Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

PUS-7c9a9e

Durable Blue Max High Performance Control Cable with stainless steel fittings, ideal for marine and racing applications.

$45.99
$45.99
Sale

Initiate Order

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$45.99

Quantity: 1

Claim Your Seller Account

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

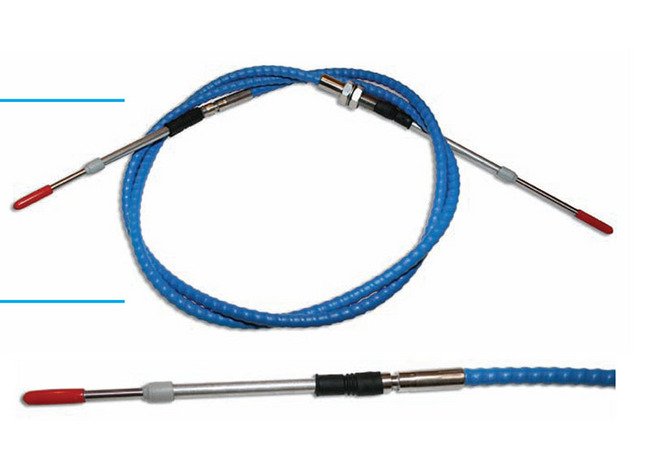

The Blue Max High Performance Push-Pull Control Cable is designed for precision and durability in demanding environments. With stainless steel exposed fittings at both ends, it ensures reliable operation in marine and racing applications. Operating at temperatures from -65 to 350 °F, this cable boasts a 1 x 19 stainless steel wrapped inner member, PTFE core, and LDPE-covered conduit for superior performance. Benefit from its very light-duty wire rope dia and multiple end fitting combinations for versatile use.

Product Specifications

Applications Marine Applications
ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable
Applications Racing Applications
ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable
Design Parameters Minimum Bend Radius
4 "
Design Parameters Operating Temperature
-65 to 350 ºF
Design Parameters Travel Minimum Length
3 "
Features 0
Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature
Material 0
1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE
Specifications End Fitting Combinations Tt Tg Gt Gg
T - Threaded Swivel/T - Threaded Swivel
Specifications Note

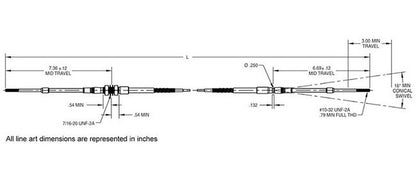

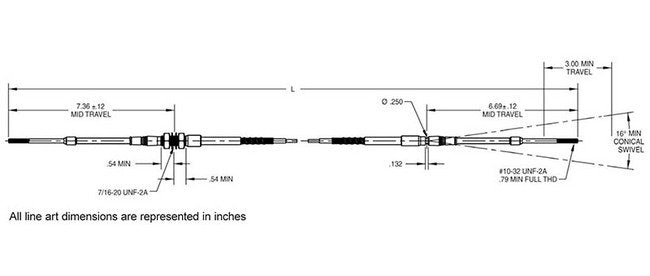

All line art dimensions are represented in inches
Specifications Seal Options
6
Specifications Wire Rope Dia
10-32 UNF End Rods - Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
