Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

SKU:PUS-a20c21

Durable Blue Max Control Cable for marine & racing applications. Stainless steel fittings, versatile end fittings. -65 to 350 °F temp range.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$49.99

Quantity: 1

Claim Your Seller Account

Blue Max High Performance Push-Pull Control Cable

Blue Max High Performance Push-Pull Control Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

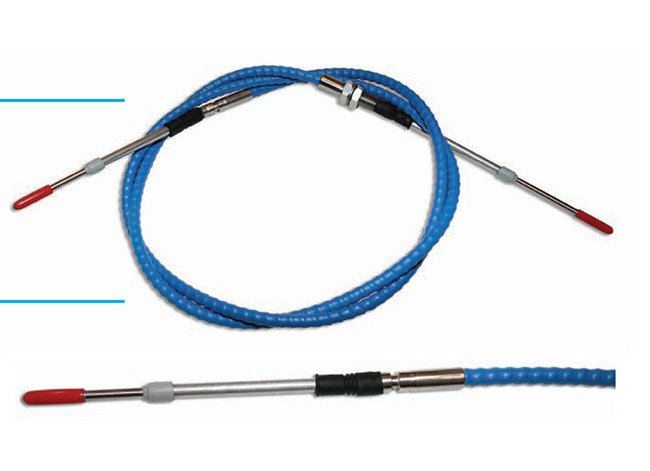

The Blue Max High Performance Push-Pull Control Cable is engineered for precision and durability. Featuring stainless steel exposed fittings and carbon steel end rods, it ensures reliable performance in marine and racing applications. With a temperature range of -65 to 350 °F and a minimum bend radius of 4", this cable is built to withstand tough conditions. It comes with various end fitting combinations such as Threaded Swivel and Grooved Swivel for versatile usage. Ideal for throttle, shift, and trim functions, this cable is not intended for use as a steering cable.

Product Specifications

Applications Marine Applications
ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable
Applications Racing Applications
ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable
Design Parameters Minimum Bend Radius
4 "
Design Parameters Operating Temperature
-65 to 350 ºF
Design Parameters Travel Minimum Length
3 "
Features 0
Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature
Material 0
1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE
Specifications End Fitting Combinations Stainless End Opposite E
T - Threaded Swivel/G - Grooved Swivel
Specifications Note

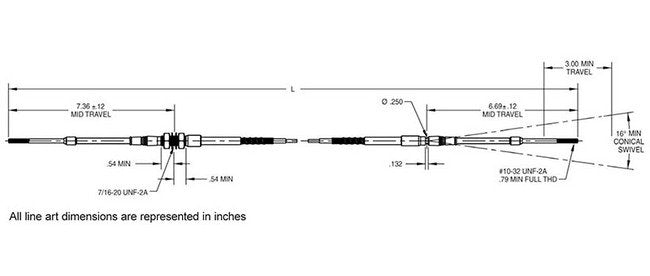

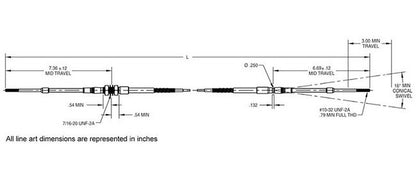

All line art dimensions are represented in inches
Specifications Seal Options
6
Specifications Wire Rope Dia
10-32 UNF End Rods - Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
