Blue Max Stainless Steel Push-Pull Cable

Blue Max Stainless Steel Push-Pull Cable

SKU:PUS-cc555c

Blue Max Stainless Steel Push-Pull Cable with high temperature resistance, ideal for marine and racing applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Blue Max Stainless Steel Push-Pull Cable

Blue Max Stainless Steel Push-Pull Cable

$49.99

Quantity: 1

Claim Your Seller Account

Blue Max Stainless Steel Push-Pull Cable

Blue Max Stainless Steel Push-Pull Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

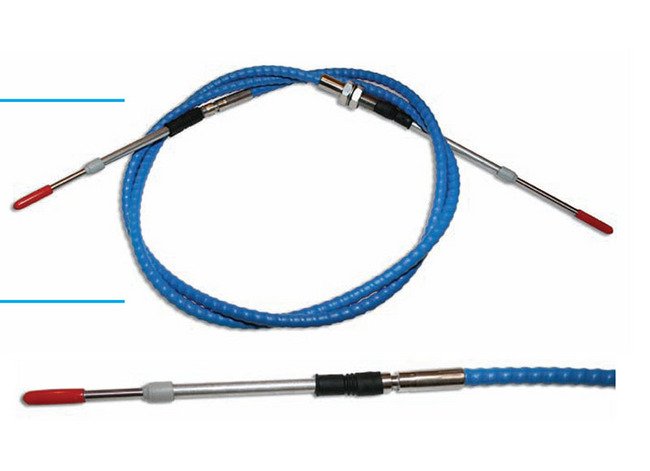

The Blue Max High Performance Push-Pull Control Cable is engineered with top-grade materials - Stainless Steel for exposed fittings, Carbon Steel for the opposite end, and Stainless Steel end rods. With a temperature range of -65 to 350 °F, this cable is ideal for marine and racing applications, featuring a 1 x 19 Stainless Steel Wrapped Innermember construction with RHOS rating. Its design parameters include a 3" travel length, minimum bend radius of 4", and various end fitting combinations. This cable ensures durability, precision, and enhanced performance in demanding environments.

Product Specifications

Applications Marine Applications
ShiftThrottleTrimSlim line grooved conduit capNot Intended For Use as Steering Cable
Applications Racing Applications
ShiftFuel Shut OffChute ReleaseThrottleNot Intended For Use as Steering Cable
Design Parameters Minimum Bend Radius
4 "
Design Parameters Operating Temperature
-65 to 350 ºF
Design Parameters Travel Minimum Length
3 "
Features 0
Travel: 3.00"Bulkhead type (threaded) conduit caps, stainless steelClamp type (grooved) conduit caps, stainless steel10-32 end rod threadsBB, BC, CC options are all availableHigh temperature
Material 0
1 x 19 Stainless Steel Wrapped InnermemberRHOS RatedStainless SteelLDPE Covered (Blue) ConduitBinder Wire Conduit Core PTFE
Specifications End Fitting Combinations Stainless End Opposite E
T - Threaded Swivel/T - Threaded Swivel
Specifications Note

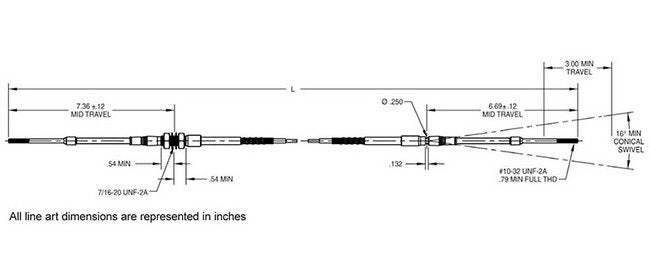

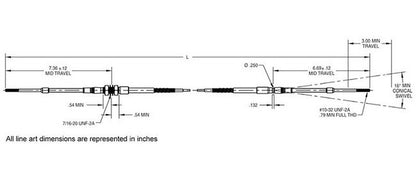

All line art dimensions are represented in inches
Specifications Seal Options
6
Specifications Wire Rope Dia
10-32 UNF End Rods - Very Light Duty
CAGE
0T9L4
NAICS
332510
PSC
4030
