Blue Star 100 kW Diesel Generator System
Blue Star 100 kW Diesel Generator System
SKU:NEW-c857c2
Get reliable power with the Blue Star 100 kW Diesel Generator, ideal for critical applications. Featuring a John Deere engine, advanced control panel, and NFPA 110 Level 1 compatibility.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
Blue Star 100 kW Diesel Generator System
$16,999.00
Quantity: 1
Claim Your Seller Account
Blue Star 100 kW Diesel Generator System
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

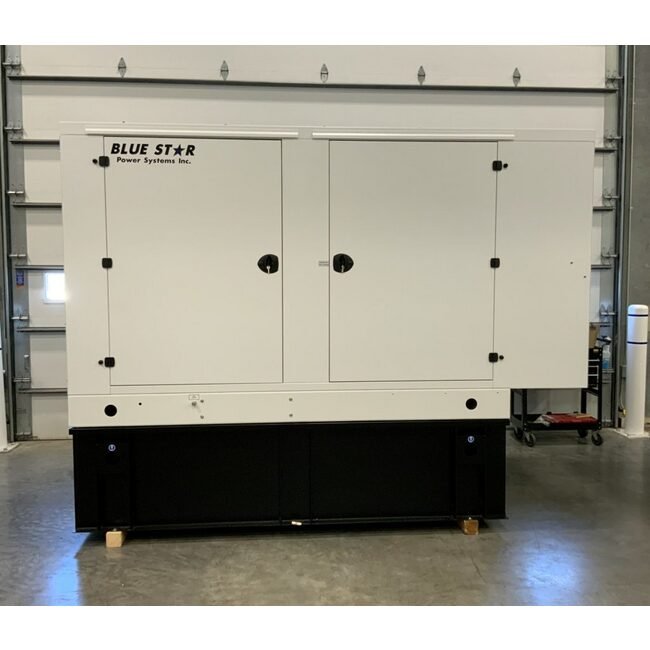

The Blue Star Power Systems 100 Kilowatt (kW) Diesel Generator is a robust and reliable solution for both consumer and institutional buyers. Manufactured by Critical Power Products & Services, LLC, this new generator features a Level II SAE standard, offering 100 kW electrical power output with a voltage range of 208 to 600V and 60Hz frequency. Powered by a John Deere 4045HF285 engine, it delivers maximum standby power of 118 kW. The generator boasts a range of features including a DCP7310 Control Panel with advanced functionalities, NFPA 110 Level 1 compatibility, and IP 65 water resistance rating.
Product Specifications
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
5,829 ft³/min | 160 m³/min
Air Requirements Standby Aspirating
288 ft³/min | 8.15 m³/min
Cooling System Standby Ambient Capacity Of Radiator
122 ºF | 50.0 ºC
Cooling System Standby Heat Radiated To Ambient
2,016 BTUM | 35.3 kW
Cooling System Standby Heat Rejection To Charge Air Cooler Cac
1,127 BTUM | 19.8 kW
Cooling System Standby Heat Rejection To Coolant
3,544 BTUM | 62.0 kW
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Cooling System Standby Water Pump Flow Rate
48.0 gpm | 182 L/min
Engine Aspiration
Turbo Charged
Engine Bore
4.19 in | 10.6 cm
Engine Compression Ratio
19.0:1
Engine Cylinder Arrangement
4 Cylinder Inline
Engine Displacement
275 in³ | 4.50 L
Engine Engine Manufacturer
John Deere
Engine Engine Model
4045HF285
Engine Maximum Standby Power
158 hp | 118 kW·m
Engine Rated Speed
1800 rpm
Engine Stroke
5.00 in | 12.7 cm
Engine Type
4-Cycle
Exhaust System Standby Gas Temperature Stack
1,076 ºF | 580 ºC
Exhaust System Standby Gas Volume At Stack Temperature
805 ft³/min | 22.8 m³/min
Exhaust System Standby Maximum Allowable Exhaust Restriction
30.0 in.H2O | 7.50 kPa

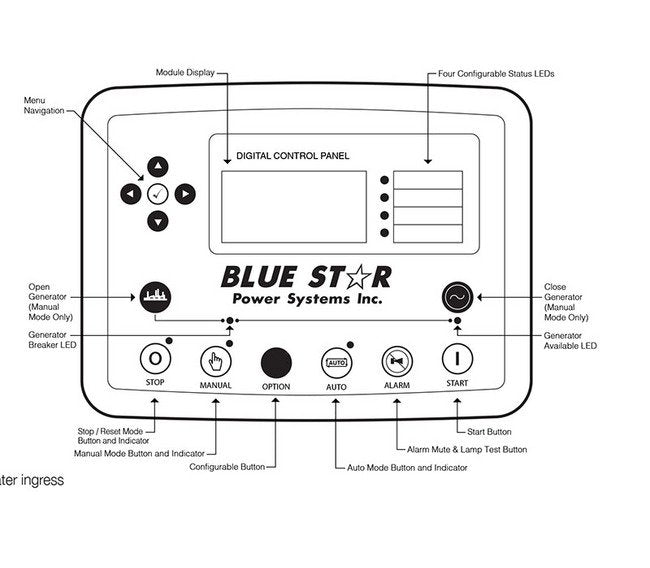

Features Dcp7310 Control Panel Standard Features
Digital MeteringEngine ParametersGenerator Protection FunctionsEngine ProtectionCAN Bus (J1939) ECU CommunicationsWindows-Based SoftwareMultilingual CapabilityRemote Communications to DSE2548 Remote Annunciator8 Programmable Contact Inputs10 Contact OutputsRS485 Communicator InterfacecULus Listed, CE ApprovedEvent RecordingIP 65 rating (with supplied gasket) offers increased resistance to water ingressNFPA 110 Level 1 Compatible
Fluids Capacity Standby Engine Jacket Water Capacity
2.24 gal | 8.50 L
Fluids Capacity Standby System Coolant Capacity
5.40 gal | 20.4 L
Fluids Capacity Standby Total Oil System
3.43 gal | 13.0 L
Fuel Consumption Standby Fuel Consumption At 100 Percent Of Powe
7.76 gal/h | 29.4 L/h
Fuel Consumption Standby Fuel Consumption At 50 Percent Of Power
4.55 gal/h | 17.2 L/h
Fuel Consumption Standby Fuel Consumption At 75 Percent Of Power
6.25 gal/h | 23.7 L/h
Note Note
Deration Factors: Rated Power is available up to 10.000 ft (3.048 m) at ambient temperatures to 122ºF (60ºC).Consult factory for site conditions above these parameters.
Technical Specs Brands
Critical Power Products & Services, LLC
Technical Specs Condition
New
Technical Specs Electrical Power Output
100 kW
Technical Specs Frequency
60 Hz
Technical Specs Fuel Type
Diesel
Technical Specs Item Number
GEN062723CPPS2
Technical Specs Rating
Standby
Technical Specs Standard Level
Level II Society of Automotive Engineers (SAE)
Technical Specs Voltage Range
208 to 600 V
