Blue Star 125 kW Diesel Mobile Generators
Blue Star 125 kW Diesel Mobile Generators
SKU:NEW-43d4bf
Blue Star 125 kW Diesel Mobile Generator - Reliable power solution for diverse applications, includes advanced control panel features.
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
Blue Star 125 kW Diesel Mobile Generators
$25,999.00
Quantity: 1
Claim Your Seller Account
Blue Star 125 kW Diesel Mobile Generators
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

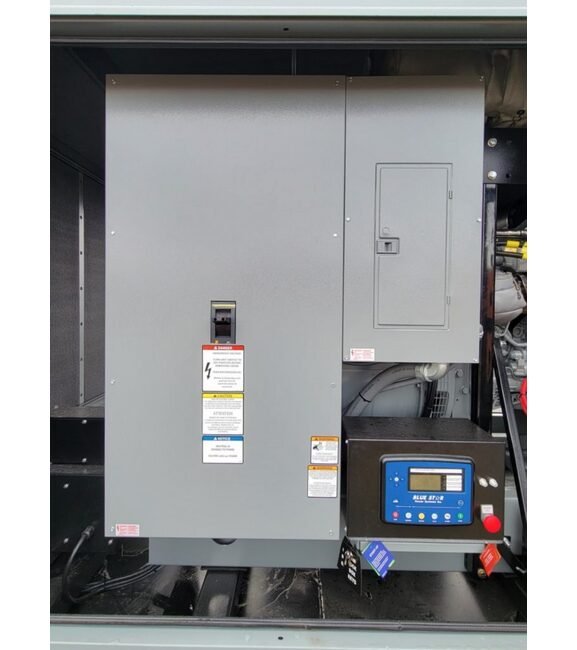

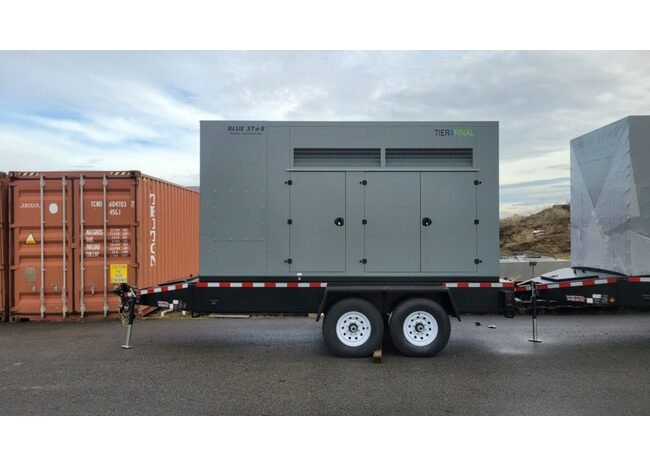

The Blue Star Power Systems 125 kW Diesel Mobile Generator is a robust and reliable solution suitable for both consumer and institutional needs. Powered by a Volvo Penta engine, it offers 125 kW electrical power output with a voltage range of 208 to 480 V and a frequency of 60 Hz. Designed for prime and standby applications, this generator features advanced cooling and exhaust systems, ensuring optimal performance and efficiency. Equipped with a DCP7310 Control Panel with a range of standard features, including digital metering, engine protection, and remote communications, this generator is NFPA 110 Level 1 Compatible and meets high industry standards.
Product Specifications
Air Requirements Prime Air Flow Required For Heat Exchangerremot
Consult Factory for Remote Cooled Applications
Air Requirements Prime Air Flow Required For Radiator Cooled Uni
10,954 ft³/min | 310 m³/min
Air Requirements Prime Aspirating
353 ft³/min | 10.0 m³/min
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
10,954 ft³/min | 310 m³/min
Air Requirements Standby Aspirating
353 ft³/min | 10.0 m³/min
Cooling System Prime Ambient Capacity Of Radiator
131 ºF | 55.0 ºC
Cooling System Prime Heat Radiated To Ambient
1,457 BTUM | 25.5 kW
Cooling System Prime Heat Rejection To Charge Air Cooler Cac
1,518 BTUM | 26.6 kW
Cooling System Prime Heat Rejection To Coolant
5,050 BTUM | 88.4 kW
Cooling System Prime Maximum Allowable Static Pressure On Radiat
0.50 in.H2O | 0.12 kPa
Cooling System Prime Water Pump Flow Rate
117 gpm | 444 L/min
Cooling System Standby Ambient Capacity Of Radiator
131 ºF | 55.0 ºC
Cooling System Standby Heat Radiated To Ambient
1,457 BTUM | 25.5 kW
Cooling System Standby Heat Rejection To Charge Air Cooler Cac
1,518 BTUM | 26.6 kW
Cooling System Standby Heat Rejection To Coolant
5,050 BTUM | 88.4 kW
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Cooling System Standby Water Pump Flow Rate
117 gpm | 444 L/min
Engine Aspiration
Turbo Charged, Charge Air Cooler (CAC)
Engine Bore
4.33 in | 11.0 cm
Engine Maximum Standby Power
218 hp | 160 kW·m
Exhaust System Prime Gas Volume At Stack Temperature
848 ft³/min | 24.0 m³/min
Exhaust System Standby Gas Volume At Stack Temperature
848 ft³/min | 24.0 m³/min
Fluids Capacity Prime Diesel Exhaust Fluid Def Tank Capacity
18.5 gal | 70.0 L
Fluids Capacity Prime Engine Jacket Water Capacity
3.40 gal | 13.0 L
Fluids Capacity Prime System Coolant Capacity
10.2 gal | 38.6 L
Fluids Capacity Prime Total Oil System
4.23 gal | 16.0 L
Fluids Capacity Standby Diesel Exhaust Fluid Def Tank Capacity
18.5 gal | 70.0 L
Fluids Capacity Standby Engine Jacket Water Capacity
3.40 gal | 13.0 L
Fluids Capacity Standby System Coolant Capacity
10.2 gal | 38.6 L
Fluids Capacity Standby Total Oil System
4.23 gal | 16.0 L
Fuel Consumption Prime Fuel Consumption At 100 Percent Of Power
8.75 gal/h | 33.1 L/h
Fuel Consumption Prime Fuel Consumption At 50 Percent Of Power R
5.86 gal/h | 22.2 L/h
Fuel Consumption Prime Fuel Consumption At 75 Percent Of Power R
7.31 gal/h | 27.7 L/h
Fuel Consumption Standby Fuel Consumption At 100 Percent Of Powe
8.75 gal/h | 33.1 L/h
Fuel Consumption Standby Fuel Consumption At 50 Percent Of Power
5.86 gal/h | 22.2 L/h
Fuel Consumption Standby Fuel Consumption At 75 Percent Of Power
7.31 gal/h | 27.7 L/h
Technical Specs Brands
Critical Power Products & Services, LLC
Technical Specs Electrical Power Output
125 kW
Technical Specs Voltage Range
208 to 480 V
