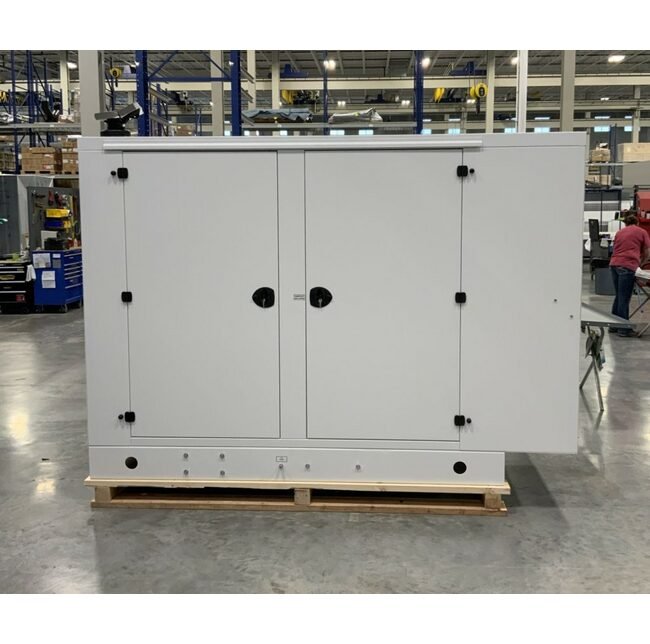

The Blue Star Power Systems 100 kW Natural Gas Generator is a reliable power solution ideal for both consumer and institutional buyers. With a Level II Society of Automotive Engineers (SAE) standard rating, this generator offers 100 kW electrical power output, a voltage range of 208 to 600 V, and operates at a frequency of 60 Hz. Powered by a Power Solutions International engine, this generator boasts a robust 8 Cylinder Vee design and Turbo Charged, Charge Air Cooler (CAC) aspiration for optimal performance. The generator features a DCP7310 Control Panel with advanced functionalities like Digital Metering, Engine Protection, and Event Recording, making it a versatile and dependable choice for various applications.
Product Specifications
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
16,500 ft³/min | 467 m³/min
Air Requirements Standby Aspirating
262 ft³/min | 7.41 m³/min
Cooling System Standby Ambient Capacity Of Radiator
122 ºF | 50.0 ºC
Cooling System Standby Heat Radiated To Ambient
2,121 BTUM | 37.1 kW
Cooling System Standby Heat Rejection To Charge Air Cooler Cac
711 BTUM | 12.4 kW
Cooling System Standby Heat Rejection To Coolant
4,100 BTUM | 71.8 kW
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Cooling System Standby Water Pump Flow Rate
40.0 gpm | 147.6 L/min
Engine Aspiration
Turbo Charged, Charge Air Cooler (CAC)
Engine Bore
4.00 in | 10.2 cm
Engine Compression Ratio
9.40:1
Engine Cylinder Arrangement
8 Cylinder Vee
Engine Displacement
350 in³ | 5.70 L
Engine Engine Manufacturer
Power Solutions International
Engine Engine Model
5.7LTCAC
Engine Maximum Standby Power
164 hp | 122 kW·m
Engine Rated Speed
1800 rpm
Engine Stroke
3.48 in | 8.84 cm
Engine Type
4-Cycle
Exhaust System Standby Gas Temperature Stack
1,350 ºF | 732 ºC
Exhaust System Standby Gas Volume At Stack Temperature
846 ft³/min | 23.9 m³/min
Exhaust System Standby Maximum Allowable Exhaust Restriction
40.8 in.H2O | 10.2 kPa

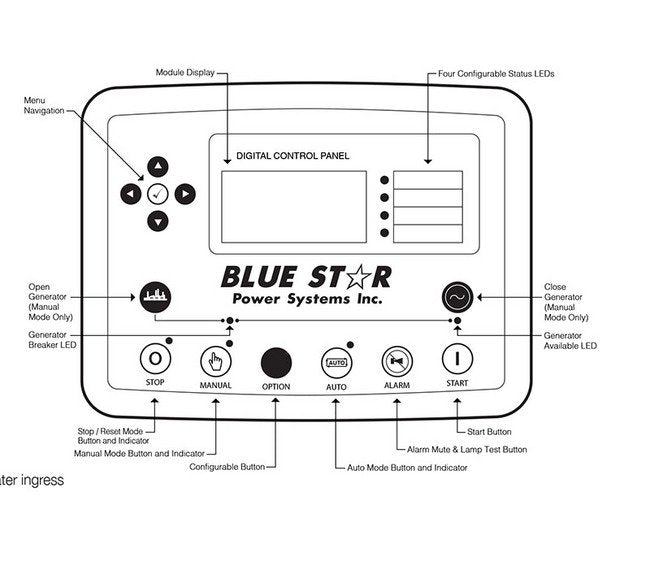

Features Dcp7310 Control Panel Standard Features
Digital MeteringEngine ParametersGenerator Protection FunctionsEngine ProtectionCAN Bus (J1939) ECU CommunicationsWindows-Based SoftwareMultilingual CapabilityRemote Communications to DSE2548 Remote Annunciator8 Programmable Contact Inputs10 Contact OutputsRS485 Communicator InterfacecULus Listed, CE ApprovedEvent RecordingIP 65 rating (with supplied gasket) offers increased resistance to water ingressNFPA 110 Level 1 Compatible
Fluids Capacity Standby Engine Jacket Water Capacity
2.03 gal | 7.67 L
Fluids Capacity Standby System Coolant Capacity
6.30 gal | 23.8 L
Fluids Capacity Standby Total Oil System
1.50 gal | 5.70 L
Fuel Consumption Standby Fuel Inlet Size National Pipe Taper Npt
1.50 in
Fuel Consumption Standby Fuel Pressure Required
11.0 in.H2O | 2.75 kPa
Fuel Consumption Standby Liquid Propane Lp Consumption At 100 Pe
509 ft³/h | 14.4 m³/h
Fuel Consumption Standby Liquid Propane Lp Consumption At 50 Per
290 ft³/h | 8.22 m³/h
Fuel Consumption Standby Liquid Propane Lp Consumption At 75 Per
411 ft³/h | 11.6 m³/h
Fuel Consumption Standby Natural Gas Consumption At 100 Percent
1,360 ft³/h | 38.5 m³/h
Fuel Consumption Standby Natural Gas Consumption At 50 Percent O
770 ft³/h | 21.8 m³/h
Fuel Consumption Standby Natural Gas Consumption At 75 Percent O
1,110 ft³/h | 31.4 m³/h
Note Note
All calculations based on natural gas fuel.Deration Factors: Temperature: Derate 1.5% Per 10ºF Over 77ºF Air Inlet TemperatureAltitude: Derate 2.5% Per 1,000 ft Over 1,200 ft
Technical Specs Brands
Critical Power Products & Services, LLC
Technical Specs Condition
New
Technical Specs Electrical Power Output
100 kW
Technical Specs Voltage Range
208 to 600 V
