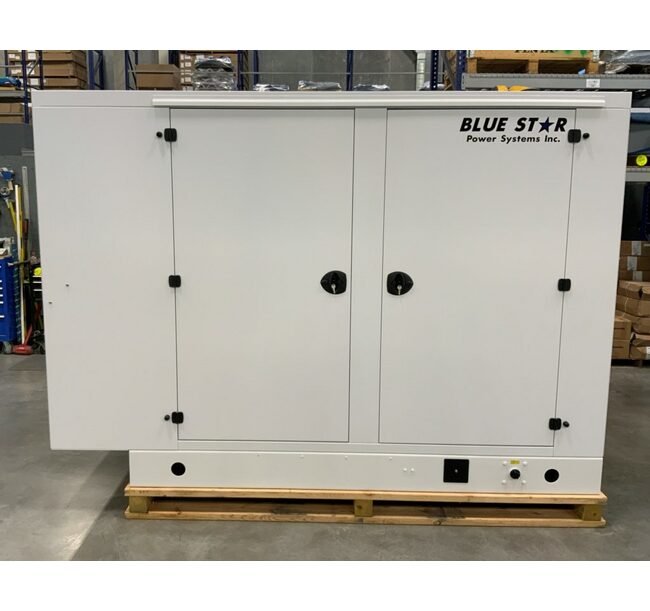

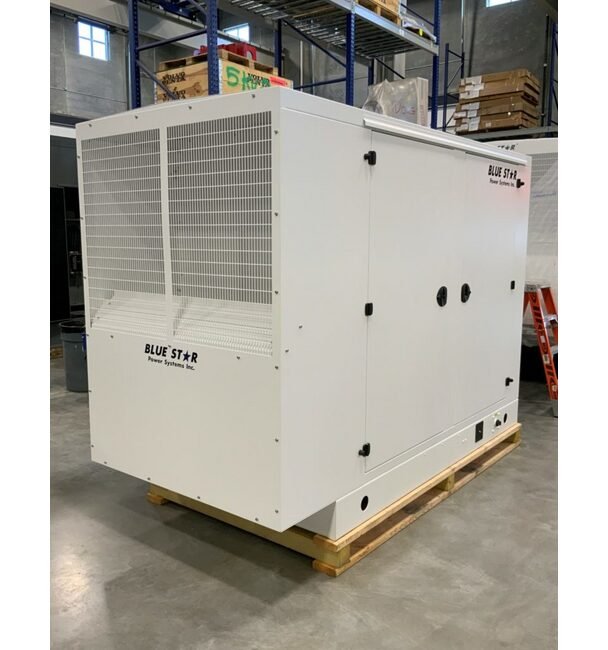

The Blue Star Power Systems 150kW Natural Gas Generator is a reliable standby power solution suitable for a wide range of applications. With industry-leading features like a Level II Society of Automotive Engineers standard, 208 to 600 V voltage range, and a sturdy Power Solutions International engine, this generator ensures seamless operation during power outages. The DCP7310 Control Panel offers advanced digital metering and engine protection capabilities. NFPA 110 Level 1 compatibility and adherence to strict industry standards make this generator a top choice for both institutional and government buyers.
Product Specifications
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
12,000 ft³/min | 340 m³/min
Air Requirements Standby Aspirating
365 ft³/min | 10.3 m³/min
Cooling System Standby Ambient Capacity Of Radiator
122 ºF | 50.0 ºC
Cooling System Standby Heat Radiated To Ambient
3,150 BTUM | 55.1 kW
Cooling System Standby Heat Rejection To Charge Air Cooler Cac
642 BTUM | 11.2 kW
Cooling System Standby Heat Rejection To Coolant
5,021 BTUM | 87.9 kW
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Cooling System Standby Water Pump Flow Rate
33.0 gpm | 125 L/min
Engine Aspiration
Turbo Charged, Charge Air Cooler (CAC)
Engine Bore
4.35 in | 11.0 cm
Engine Compression Ratio
10.1:1
Engine Cylinder Arrangement
8 Cylinder Vee
Engine Displacement
535 in³ | 8.80 L
Engine Engine Manufacturer
Power Solutions International
Engine Engine Model
8.8LTCAC
Engine Maximum Standby Power
261 hp | 195 kW·m
Engine Rated Speed
1800 rpm
Engine Stroke
4.50 in | 11.4 cm
Engine Type
4-Cycle
Exhaust System Standby Gas Temperature Stack
1,350 ºF | 732 ºC
Exhaust System Standby Gas Volume At Stack Temperature
1178 ft³/min | 33.3 m³/min
Exhaust System Standby Maximum Allowable Exhaust Restriction
40.8 in.H2O | 10.2 kPa

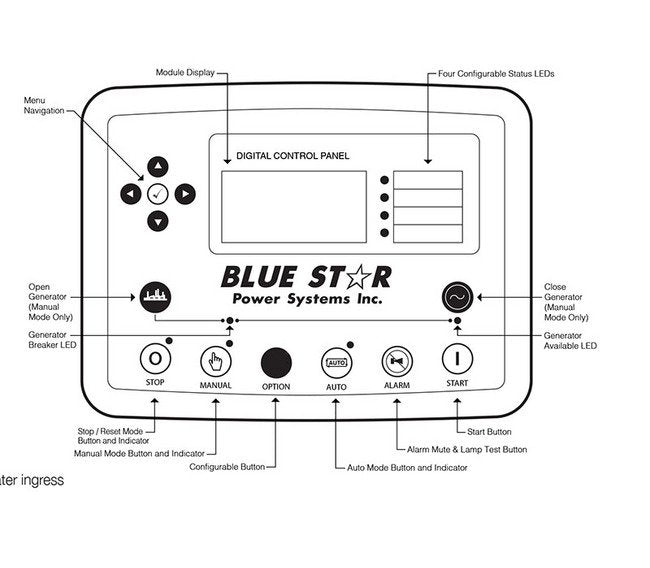

Features Dcp7310 Control Panel Standard Features
Digital MeteringEngine ParametersGenerator Protection FunctionsEngine ProtectionCAN Bus (J1939) ECU CommunicationsWindows-Based SoftwareMultilingual CapabilityRemote Communications to DSE2548 Remote Annunciator8 Programmable Contact Inputs10 Contact OutputsRS485 Communicator InterfacecULus Listed, CE ApprovedEvent RecordingIP 65 rating (with supplied gasket) offers increased resistance to water ingressNFPA 110 Level 1 Compatible
Fluids Capacity Standby Liquid Petroleum Engine Jacket Water Cap
3.63 gal | 13.72 L
Fluids Capacity Standby Liquid Petroleum System Coolant Capacity
7.40 gal | 28.0 L
Fluids Capacity Standby Liquid Petroleum Total Oil System
2.00 gal | 7.57 L
Fuel Consumption Standby Liquid Petroleum Consumption At 100 Per
713 ft³/h | 20.3 m³/h
Fuel Consumption Standby Liquid Petroleum Consumption At 50 Perc
399 ft³/h | 11.3 m³/h
Fuel Consumption Standby Liquid Petroleum Consumption At 75 Perc
547 ft³/h | 15.5 m³/h
Fuel Consumption Standby Liquid Petroleum Fuel Inlet National Pi
1.50 in
Fuel Consumption Standby Liquid Petroleum Required Fuel Pressure
2.75 kPa | 11.0 in.H2O
Fuel Consumption Standby Natural Gas Consumption At 100 Percent
1,965 ft³/h | 55.6 m³/h
Fuel Consumption Standby Natural Gas Consumption At 50 Percent O
1,102 ft³/h | 31.2 m³/h
Fuel Consumption Standby Natural Gas Consumption At 75 Percent O
1,529 ft³/h | 43.3 m³/h
Note Note
All calculations based on natural gas fuel.Deration Factors: Temperature: Derate 1.5% Per 10°F Over 77°F Air Inlet TemperatureAltitude: Derate 2.5% Per 1,000 ft Over 1,200 ft
Technical Specs Brands
Blue Star Power Systems Inc.
Technical Specs Condition
New
Technical Specs Electrical Power Output
150 kW
Technical Specs Voltage Range
208 to 600 V
