Blue Star Power Systems 2000 kW Diesel Generators
Blue Star Power Systems 2000 kW Diesel Generators
SKU:NEW-cb1aa2
Reliable Blue Star 2000 kW Diesel Generators for institutional buyers. Advanced features for critical power needs.
Regular price
$29,999.99
Regular price
Sale price
$29,999.99
Unit price
per
Initiate Order
Blue Star Power Systems 2000 kW Diesel Generators
$29,999.99
Quantity: 1
Claim Your Seller Account
Blue Star Power Systems 2000 kW Diesel Generators
$29,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Blue Star Power Systems 2000 kW Diesel Generators are designed to meet the demanding electrical power needs of both institutional and government entities. With a robust Mitsubishi engine and Level II SAE standards, these generators ensure reliable and efficient performance. Featuring a comprehensive DCP7310 Control Panel, digital metering, and NFPA 110 Level 1 compatibility, this generator offers advanced monitoring and protection functions. Ideal for critical applications, this unit is suitable for a wide range of environments and conditions.
Product Specifications
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
86,078 ft³/min | 2,436 m³/min
Air Requirements Standby Aspirating
7,274 ft³/min | 206 m³/min
Cooling System Standby Ambient Capacity Of Radiator
122 ºF | 50.0 ºC
Cooling System Standby Heat Radiated To Ambient
39,161 ft³/min | 685 m³/min
Cooling System Standby Heat Rejection To Intercooler
44,374 BTUM | 777 kW
Cooling System Standby Heat Rejection To Jacket Coolant
44,374 BTUM | 777 kW
Cooling System Standby Intercooler Pump Flow Rate
243 gpm | 920 L/min
Cooling System Standby Jacket Water Pump Flow Rate
489 gpm | 1,851 L/min
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Engine Aspiration
Turbo Charged, H2O/Air Intercooled
Engine Bore
6.69 in | 17.0 cm
Engine Compression Ratio
14.0:1
Engine Cylinder Arrangement
16 Cylinder Vee
Engine Displacement
3,989 in³ | 65.4 L
Engine Engine Manufacturer
Mitsubishi
Engine Engine Model
S16R-Y2PTAW2-1
Engine Maximum Standby Power
2,923 hp | 2,181 kW·m
Engine Rated Speed
1800 rpm
Engine Stroke
7.09 in | 18.0 cm
Engine Type
4-Cycle
Exhaust System Standby Gas Temperature Stack
979 ºF | 526 ºC
Exhaust System Standby Gas Volume At Stack Temperature
19,209 ft³/min | 544 m³/min
Exhaust System Standby Maximum Allowable Exhaust Restriction
23.6 in.H2O | 5.90 kPa

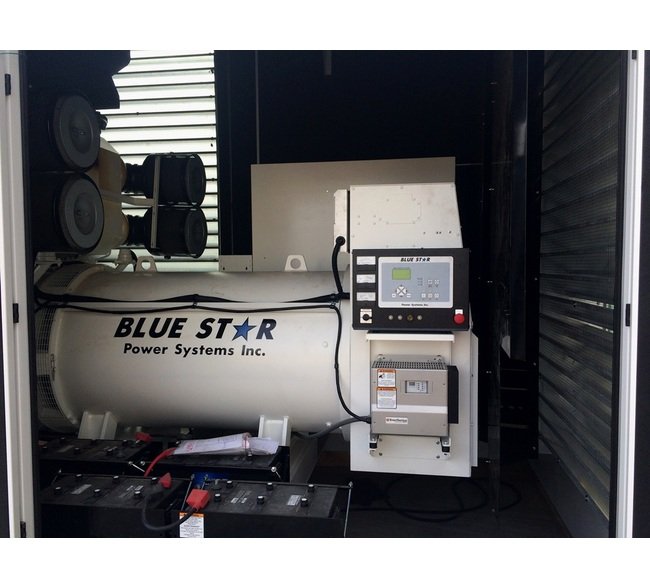

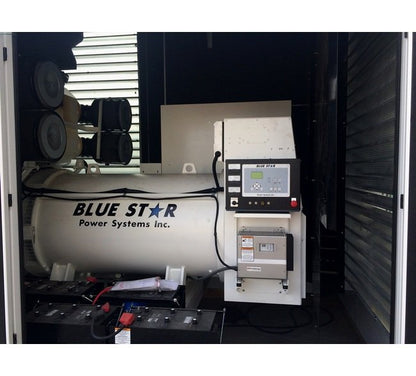

Features Dcp7310 Control Panel Standard Features
Digital MeteringEngine ParametersGenerator Protection FunctionsEngine ProtectionCAN Bus (J1939) ECU CommunicationsWindows-Based SoftwareMultilingual CapabilityRemote Communications to DSE2548 Remote Annunciator8 Programmable Contact Inputs10 Contact OutputsRS485 Communicator InterfacecULus Listed, CE ApprovedEvent RecordingIP 65 rating (with supplied gasket) offers increased resistance to waterNFPA 110 Level 1 Compatible
Fluids Capacity Standby Engine Jacket Water Capacity
44.9 gal | 170 L
Fluids Capacity Standby System Coolant Capacity
182 gal | 689 L
Fluids Capacity Standby Total Oil System
60.8 gal | 230 L
Fuel Consumption Standby Fuel Consumption At 100 Percent Of Powe
155 gal/h | 587 L/h
Fuel Consumption Standby Fuel Consumption At 50 Percent Of Power
79.2 gal/h | 300 L/h
Fuel Consumption Standby Fuel Consumption At 75 Percent Of Power
115 gal/h | 435 L/h
Note Note
Deration Factors: Rated Power is available up to 3280 ft (1000 m) at ambient temperatures to 104°F (40°C).Consult factory for site conditions above these parameters.
Technical Specs Brands
Blue Star Power Systems Inc.
Technical Specs Condition
New
Technical Specs Electrical Power Output
2,000 kW
Technical Specs Frequency
60 Hz
Technical Specs Fuel Type
Diesel
Technical Specs Item Number
GEN122618BSPS2000
Technical Specs Standard Level
Level II Society of Automotive Engineers (SAE)
Technical Specs Voltage Range
208 to 4160 V
