Blue Star Power Systems 500kW Diesel Generators by Volvo Penta
Blue Star Power Systems 500kW Diesel Generators by Volvo Penta
SKU:NEW-f19a2c
Reliable Blue Star 500kW Diesel Generator by Volvo Penta. Level II SAE standards compliant with advanced features for critical power needs.
Regular price
$59,999.00
Regular price
Sale price
$59,999.00
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

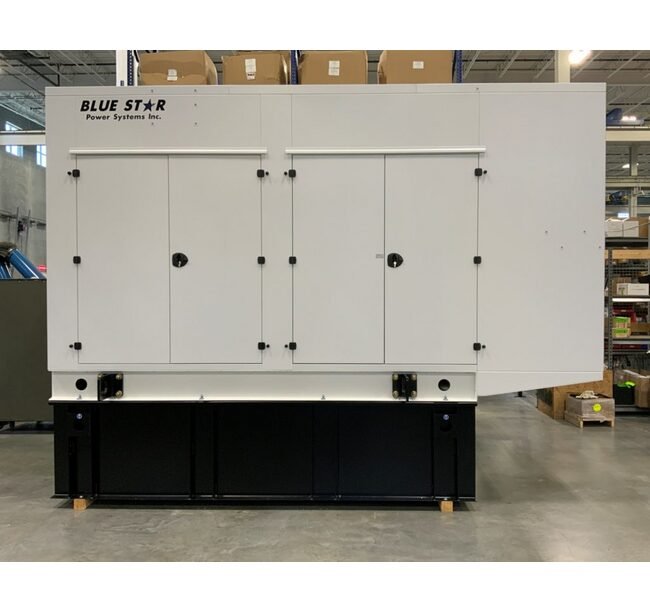

The Blue Star Power Systems 500kW Diesel Generators, featuring a Volvo Penta engine, deliver reliable power output of 500 kW at 60 Hz with a voltage range of 208 to 600 V. Designed for optimal performance, this generator boasts Level II SAE standards compliance and a host of advanced features like a DCP7310 Control Panel with digital metering, engine protection functions, and remote communications capability. With robust construction and efficient fuel consumption rates, this generator is ideal for critical operations in both consumer and institutional settings.
Product Specifications
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
18,869 ft³/min | 534 m³/min
Air Requirements Standby Aspirating
1,617 ft³/min | 45.8 m³/min
Cooling System Standby Ambient Capacity Of Radiator
131 ºF | 55.0 ºC
Cooling System Standby Heat Radiated To Ambient
9,815 BTUM | 172 kW
Cooling System Standby Heat Rejection To Charge Air Cooler Cac
8,360 BTUM | 146 kW
Cooling System Standby Heat Rejection To Coolant
13,137 BTUM | 230 kW
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Cooling System Standby Water Pump Flow Rate
122 gpm | 461 L/min
Engine Aspiration
Turbo Charged, Charge Air Cooler (CAC)
Engine Bore
5.67 in | 14.4 cm
Engine Compression Ratio
16.8:1
Engine Cylinder Arrangement
6 Cylinder Inline
Engine Displacement
984 in³ | 16.1 L
Engine Engine Manufacturer
Volvo Penta
Engine Engine Model
TAD1641GE-B
Engine Maximum Standby Power
768 hp | 573 kW·m
Engine Rated Speed
1800 rpm
Engine Stroke
6.50 in | 16.5 cm
Engine Type
4-Cycle
Exhaust System Standby Gas Temperature Stack
876 ºF | 469 ºC
Exhaust System Standby Gas Volume At Stack Temperature
3,899 ft³/min | 110 m³/min
Exhaust System Standby Maximum Allowable Exhaust Restriction
40.2 in.H2O | 10 kPa

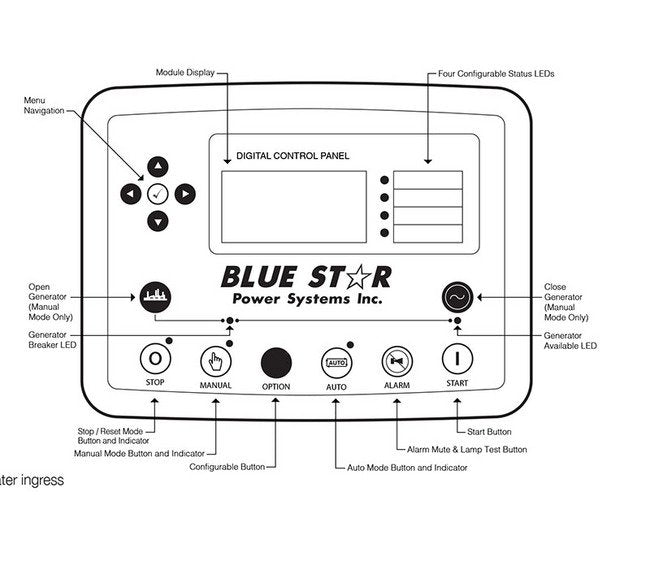

Features Dcp7310 Control Panel Standard Features
Digital MeteringEngine ParametersGenerator Protection FunctionsEngine ProtectionCAN Bus (J1939) ECU CommunicationsWindows-Based SoftwareMultilingual CapabilityRemote Communications to DSE2548 Remote Annunciator8 Programmable Contact Inputs10 Contact OutputsRS485 Communicator InterfacecULus Listed, CE ApprovedEvent RecordingIP 65 rating (with supplied gasket) offers increased resistance to water ingressNFPA 110 Level 1 Compatible
Fluids Capacity Standby Engine Jacket Water Capacity
8.70 gal | 33 L
Fluids Capacity Standby System Coolant Capacity
15.9 gal | 60.0 L
Fluids Capacity Standby Total Oil System
12.7 gal | 48.1 L
Fuel Consumption Standby Fuel Consumption At 100 Percent Of Powe
33.9 gal/h | 128 L/h
Fuel Consumption Standby Fuel Consumption At 50 Percent Of Power
17.2 gal/h | 65.1 L/h
Fuel Consumption Standby Fuel Consumption At 75 Percent Of Power
25.5 gal/h | 96.5 L/h
Note Note
Deration Factors: Rated Power is available up to 6,562 ft (2,000 m) at ambient temperatures to 122°F (50°C).Consult factory for site conditions above these parameters.
Technical Specs Brands
Blue Star Power Systems Inc.
Technical Specs Condition
New
Technical Specs Electrical Power Output
500 kW
Technical Specs Frequency
60 Hz
Technical Specs Fuel Type
Diesel
Technical Specs Item Number
GEN012624CPPS2
Technical Specs Standard Level
Level II Society of Automotive Engineers (SAE)
Technical Specs Voltage Range
208 to 600 V
