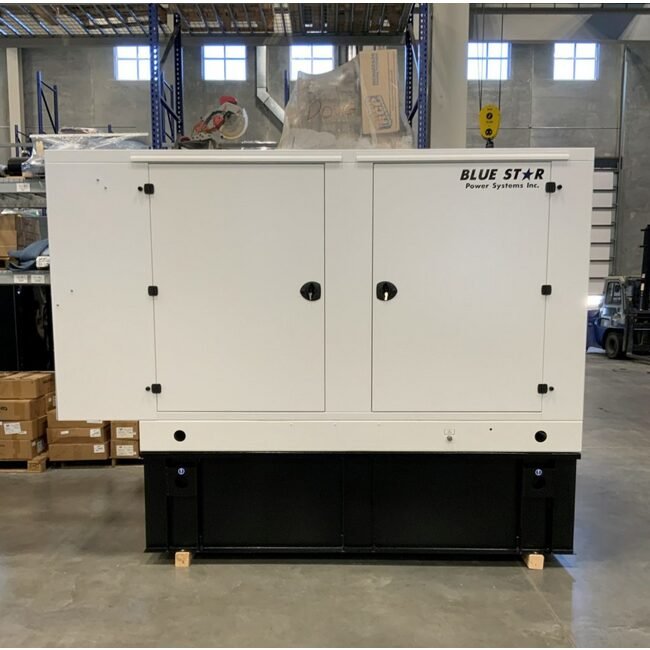

The Blue Star Power Systems 60kW Diesel Generators are designed for reliable standby power with premium features. Powered by a John Deere engine, these generators offer 60kW of electrical power output, making them ideal for critical applications. The generators meet Level II Society of Automotive Engineers (SAE) standards and come with a DCP7310 Control Panel featuring digital metering, multiple protection functions, and remote communication capabilities. With compliance to NFPA 110 Level 1 standards and robust construction, these generators ensure reliable performance in demanding environments.
Product Specifications
Air Requirements Standby Air Flow Required For Heat Exchangerrem
Consult Factory for Remote Cooled Applications
Air Requirements Standby Air Flow Required For Radiator Cooled U
4,760 ft³/min | 135 m³/min
Air Requirements Standby Aspirating
187 ft³/min | 5.29 m³/min
Cooling System Standby Ambient Capacity Of Radiator
122 ºF | 50.0 ºC
Cooling System Standby Heat Radiated To Ambient
1,237 BTUM | 21.6 kW
Cooling System Standby Heat Rejection To Coolant
2,049 BTUM | 35.9 kW
Cooling System Standby Maximum Allowable Static Pressure On Radi
0.50 in.H2O | 0.12 kPa
Cooling System Standby Water Pump Flow Rate
38.0 gpm | 144 L/min
Engine Aspiration
Turbo Charged
Engine Bore
4.19 in | 10.6 cm
Engine Compression Ratio
19.0:1
Engine Cylinder Arrangement
4 Cylinder Inline
Engine Displacement
275 in³ | 4.50 L
Engine Engine Manufacturer
John Deere
Engine Engine Model
4045TF280
Engine Maximum Standby Power
85.0 hp | 63.4 kW·m
Engine Rated Speed
1800 rpm
Engine Stroke
5.00 in | 12.7 cm
Engine Type
4-Cycle
Exhaust System Standby Gas Temperature Stack
1,074 ºF | 579 ºC
Exhaust System Standby Gas Volume At Stack Temperature
679 ft³/min | 19.2 m³/min
Exhaust System Standby Maximum Allowable Exhaust Restriction
30.0 in.H2O | 7.50 kPa

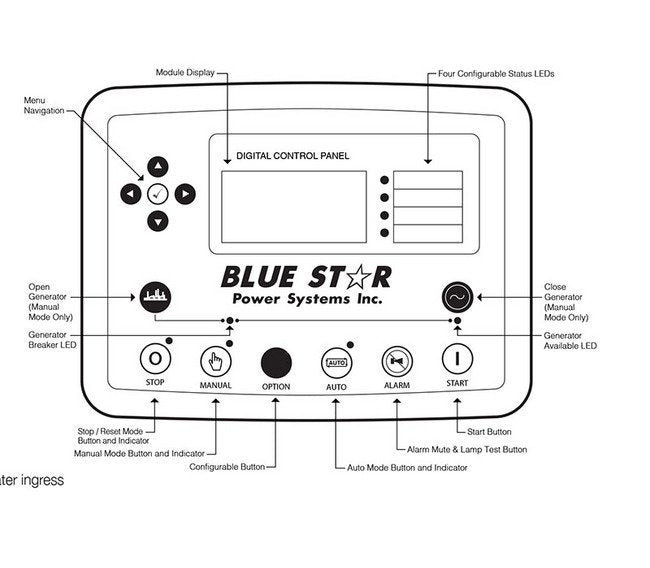

Features Dcp7310 Control Panel Standard Features
Digital MeteringEngine ParametersGenerator Protection FunctionsEngine ProtectionCAN Bus (J1939) ECU CommunicationsWindows-Based SoftwareMultilingual CapabilityRemote Communications to DSE2548 Remote Annunciator8 Programmable Contact Inputs10 Contact OutputsRS485 Communicator InterfacecULus Listed, CE ApprovedEvent RecordingIP 65 rating (with supplied gasket) offers increased resistance to water ingressNFPA 110 Level 1 Compatible
Fluids Capacity Standby Engine Jacket Water Capacity
2.32 gal | 8.50 L
Fluids Capacity Standby System Coolant Capacity
5.40 gal | 20.4 L
Fluids Capacity Standby Total Oil System
3.88 gal | 14.7 L
Fuel Consumption Standby Fuel Consumption At 100 Percent Of Powe
4.95 gal/h | 18.7 L/h
Fuel Consumption Standby Fuel Consumption At 50 Percent Of Power
2.72 gal/h | 10.3 L/h
Fuel Consumption Standby Fuel Consumption At 75 Percent Of Power
3.86 gal/h | 14.6 L/h
Note Note
Deration Factors: Rated Power is available up to 10,000 ft (3,048 m) at ambient temperatures to 122ºF (50ºC).Consult factory for site conditions above these parameters.
Technical Specs Brands
Critical Power Products & Services, LLC
Technical Specs Condition
New
Technical Specs Electrical Power Output
60 kW
Technical Specs Frequency
60 Hz
Technical Specs Fuel Type
Diesel
Technical Specs Item Number
GEN012624CPPS3
Technical Specs Rating
Standby
Technical Specs Standard Level
Level II Society of Automotive Engineers (SAE)
Technical Specs Voltage Range
280 to 600 V
