BN Composite Crucible for Evaporation Systems
BN Composite Crucible for Evaporation Systems
SKU:CRU-20b984
High-performance Boron Nitride Crucible for precise evaporation processes.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
BN Composite Crucible for Evaporation Systems
$79.99
Quantity: 1
Claim Your Seller Account
BN Composite Crucible for Evaporation Systems
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The C5 Boron Nitride Composite Crucible is a superior choice for evaporation applications. With a wall thickness of 0.060 inches and a tapered design, this crucible is compatible with CH-5, CH-12, and CH-13 heaters, as well as B10 baskets. Made of Boron Nitride, it offers excellent dielectric properties, high temperature stability, and resistance to thin film fabrication materials. Custom crucibles in Boron Nitride, Carbon, Tantalum, and Molybdenum are also available upon request, ensuring versatility for various experimental needs.
Product Specifications
Features 0
Boron Nitride is similar to graphite in crystal structure.It is an excellent dielectric over a wide range of temperatures.It is not attacked by many materials used for thin film fabrication.All Boron Nitride crucibles should be slowly heated and thoroughly outgassed before use.
Manufacturing Notes 0
Custom Boron Nitride, Carbon, Tantalum and Molybdenum crucibles on request.

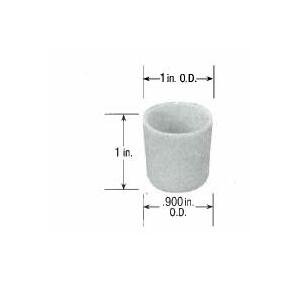

Specifications Crucible Height
1
Specifications Crucible Material
Boron Nitride Composite
Specifications Crucible Type
Tapered
Specifications Used With
Use with CH-5, CH-12 and CH-13 Heaters and with B10 Basket
Specifications Wall Thickness
0.060 in
