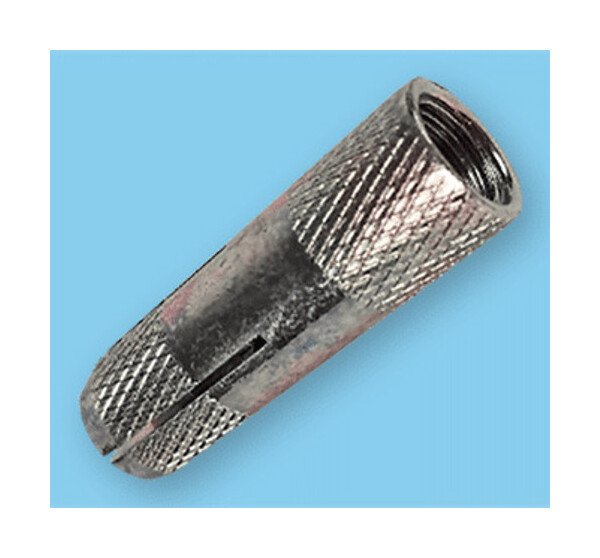

BN Products 3/8 Inch Inside Thread Sanko Drop-In Concrete Anchor
BN Products 3/8 Inch Inside Thread Sanko Drop-In Concrete Anchor
SKU:DRO-063871
Trust the BN Products 3/8 Inch Inside Thread Sanko Drop-In Concrete Anchors for superior strength and easy installation.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
BN Products 3/8 Inch Inside Thread Sanko Drop-In Concrete Anchor
$69.99
Quantity: 1
Claim Your Seller Account
BN Products 3/8 Inch Inside Thread Sanko Drop-In Concrete Anchor
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BN Products 3/8 Inch Inside Thread Sanko Drop-In Concrete Anchor is a superior choice for heavy-duty concrete projects. With machine-rolled inside threads and an ultimate tension load of 3307 lb, these anchors offer exceptional holding strength. Each anchor has an embedment depth of 1-9/16 inches and an outside diameter of 1/2 inch. Designed for flush mounting applications, these Sanko anchors are 15% stronger than the competition for reliable performance. Includes a setting tool for easy installation.
Product Specifications
Additional Information Additional Information
The most trusted name in core drilling anchors. A recent study shows that Sanko anchors are 15% stronger than the competition Versatile - will work with bolts and threaded rod in any length Recessed - drill the hole the same length as the anchor for a flush finish. Drill deeper for more embedment into masonry projects If anchor is no longer needed, simply plug or fill with cement to make the surface smooth again For proper installation, we recommend the use of our setting tool.Values shown on the chart are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1, or 25%, is generally accepted as a safe working load. The concrete compressive strength should be 2,987 psi Inside threads are machine rolled rather than cut for superior holding strength.CT-3040U - Drop-in anchors are internally threaded controlled expansion fasteners with an expansion plug. They are suitable for flush mounting applications in solid base materials like concrete. The anchor is set by driving the expansion plug towards the bottom of the anchor using a setting tool.
Technical Specs Box Quantity
50
Technical Specs Brands
BN Products
Technical Specs Carton Quantity
1000
Technical Specs Drill Bit Diameter
1/2 in
Technical Specs Embedment Depth
1-9/16 in
Technical Specs Inside Thread
3/8 in
Technical Specs Length
1-9/16 in
Technical Specs Outside Diameter
1/2 in
Technical Specs Setting Tool Required
HT-3040 (Free with Carton Purchase)
Technical Specs Tension Load
3307 lb
Technical Specs Thread Length
5/8 in
