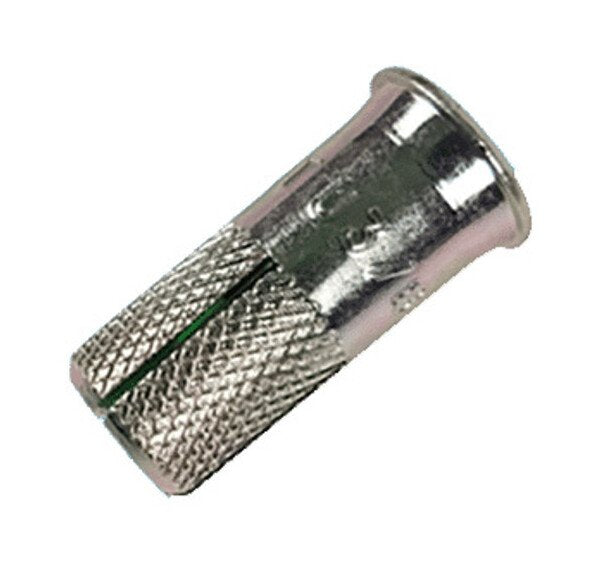

BN Products 3/8 Inch Sanko Shorty Lipped Flange Drop-In Concrete Anchor
BN Products 3/8 Inch Sanko Shorty Lipped Flange Drop-In Concrete Anchor
SKU:DRO-f10b8b
Premium 3/8 Inch Sanko Concrete Anchor with superior strength and semi-flush installation for heavy-duty applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
BN Products 3/8 Inch Sanko Shorty Lipped Flange Drop-In Concrete Anchor
$49.99
Quantity: 1
Claim Your Seller Account
BN Products 3/8 Inch Sanko Shorty Lipped Flange Drop-In Concrete Anchor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BN Products 3/8 Inch Sanko Shorty Lipped Flange Drop-In Concrete Anchor is engineered for heavy-duty applications in concrete. With a 1-9/16 inch embedment depth and a tension load capacity of 2867 lb, these anchors offer superior strength and reliability. The flanged top design allows for semi-flush installation, providing a seamless finish. Recommended for use with the HT-3040 setting tool, these anchors are 15% stronger than competitors, ensuring secure fastenings for bolts and threaded rods. Trust BN Products for high-quality concrete anchors that meet stringent industry standards.
Product Specifications
Additional Information Additional Information
The most trusted name in core drilling anchors that are 15% stronger than the competition Versatile - will work with bolts and threaded rod in any length Recessed - drill the hole the same length as the anchor for a flush finish. Drill deeper for more embedment into masonry projects If the anchor is no longer needed, simply plug or fill with cement to make the surface smooth again For proper installation, we recommend the use of our setting tool Values shown on the chart are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1, or 25%, is generally accepted as a safe working load. The concrete compressive strength should be 2,987 psi Inside threads are machine rolled rather than cut for superior holding strength.GT-3030U - Similar to the CT-type anchor, these drop-in anchors are designed with a flanged (lipped) top for semi-flush installation in concrete. They are set exactly the same way with an expansion plug and a setting tool.
Technical Specs Box Quantity
100
Technical Specs Brands
BN Products
Technical Specs Carton Quantity
800
Technical Specs Drill Bit Diameter
1/2 in
Technical Specs Embedment Depth
1-9/16 in
Technical Specs Inside Thread
3/8 in
Technical Specs Length
1-3/16 in
Technical Specs Outside Diameter
1/2 in
Technical Specs Setting Tool Required
HT-3040
Technical Specs Tension Load
2867 lb
Technical Specs Thread Length
1/2 in
