Board Support for .093 Thick PCB with Chassis Hole

Name: Board Support for .093 Thick PCB with Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-2c625f
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-2c625f

Durable Board Support for .093 Thick PCB & Chassis Hole, Pack of 1000, Heat & Chemical Resistant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

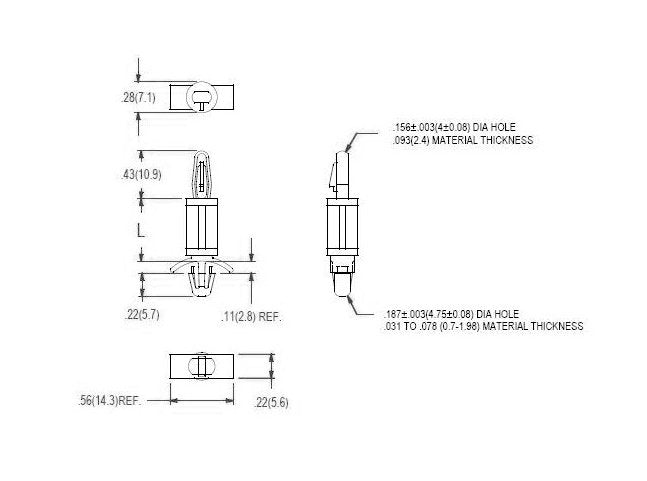

The 13-3 Series Board Support is designed for .093 thick PCBs, featuring a .156 board hole and a .187 chassis hole. Each support is crafted from Nylon 66 UL94V-2 material (UL94V-0 available upon request), ensuring durability and heat resistance. With ASTM D4066, PA111, and RoHS compliance, these supports offer reliability in temperatures ranging from -40 to 185F (-40 to 85C). Each pack contains 1000 supports, making it ideal for stocking up on quality PCB components.

Product Specifications

Specifications Board Thickness

.093 (2.4) inches (mm)

Specifications Chassis Thickness

.031 - .078 (.7-1.98) inches (mm)

Specifications Dim L 015

1.00 (25.4) inches (mm)

Board Support for .093 Thick PCB with Chassis Hole
