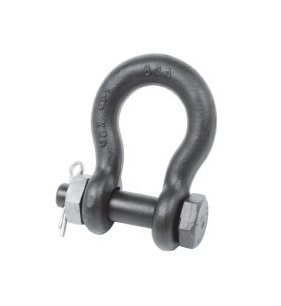

Bolt Type Anchor Shackle - Heavy Duty Hoist Ring Accessory
Bolt Type Anchor Shackle - Heavy Duty Hoist Ring Accessory
SKU:HOI-bd6027
Heavy-duty Bolt Type Anchor Shackle for secure and reliable hoisting. Meets Federal Spec RR-C 271D. Carbon Steel construction. Load rated at 24000 lbs. Easy to install.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Bolt Type Anchor Shackle - Heavy Duty Hoist Ring Accessory
$59.99
Quantity: 1
Claim Your Seller Account
Bolt Type Anchor Shackle - Heavy Duty Hoist Ring Accessory
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bolt Type Anchor Shackle is a robust accessory for heavy-duty hoist rings, engineered to meet the stringent Federal Specification RR-C 271D, Type IVA, Grade A, Class 3 standards. Crafted from high-quality Carbon Steel, this shackle ensures durability and reliability in industrial applications. With a load rating of 24000 pounds (10886 kg) and a minimum ultimate load 6 times its working load limit, it guarantees secure lifting operations. This shackle comes complete with a thin head bolt & nut with cotter pin for added safety and easy installation. Upgrade your hoisting setup with this premium Bolt Type Anchor Shackle for peace of mind in demanding environments.
Product Specifications
Specifications A Radius
1.63 in
Specifications Country Of Origin
US
Specifications C Ring Width
5.75 in
Specifications D Diameter
1.25 in
Specifications F Height
8.25 in
Specifications H Inside Clearance
4.69 in
Specifications I Overall Width
6.51 in
Specifications Material
Carbon Steel
Specifications M Inside Width
2.03 in
Specifications Ps Load Rated
24000 Pounds (10886 kg)
Specifications R1
1.25 in
Specifications R2
3.00 in
Specifications R Bolt Diameter
1.38 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
11.71 lb
