Bolt Type Medium Pressure Silicone Test Plug with By-Pass - 146-9 Series
Bolt Type Medium Pressure Silicone Test Plug with By-Pass - 146-9 Series
SKU:HIG-b49850
Reliable testing with Nitrile seals & custom configurations. Rated pressure: 80 psig. Ideal for 3.51 in pipelines. Variety of seal materials available.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Bolt Type Medium Pressure Silicone Test Plug with By-Pass - 146-9 Series
$99.99
Quantity: 1
Claim Your Seller Account
Bolt Type Medium Pressure Silicone Test Plug with By-Pass - 146-9 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bolt Type Medium Pressure Silicone Test Plug with By-Pass from the 146-9 Series is designed for simple, reliable testing of pipelines. Featuring Nitrile seals for hydrocarbon resistance and plated carbon steel construction, this plug offers a rated pressure of 80 psig. With a minimum pipe inside diameter of 3.51 inches and a variety of custom configurations available, including different seal materials, pressure ratings, and optional by-pass valves, this plug ensures efficient and safe testing procedures without tube wall damage.
Product Specifications

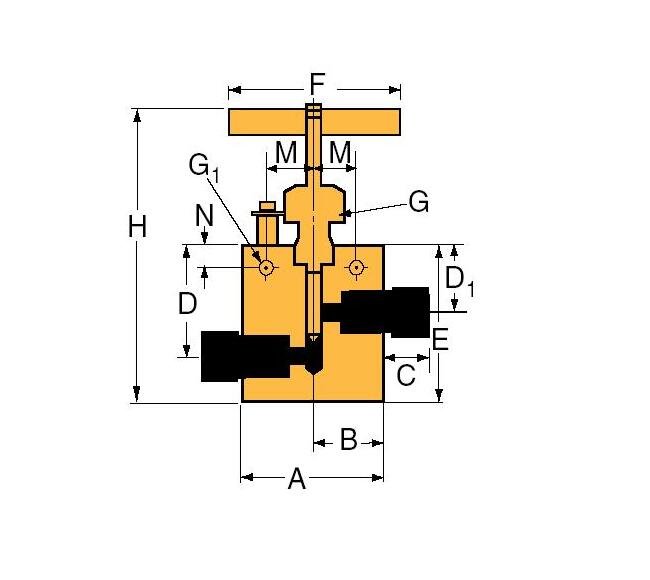

Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W125
Specifications C Length
0.45 in | 11.43 mm
Specifications D1 Height
0.56 in | 14.30 mm
Specifications D Height
0.81 in | 20.65 mm
Specifications E Height
1.13 in | 28.58 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.38 in | 60.38 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
1/8 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.11
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
