Bolt Type Medium Pressure Test Plug with By-Pass - 146-9 Series
$299.99
Quantity: 1
Claim Your Seller Account
Bolt Type Medium Pressure Test Plug with By-Pass - 146-9 Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bolt Type Medium Pressure Test Plug with By-Pass from the 146-9 Series by Petersen® offers simple, reliable testing of pipelines. Featuring a rated pressure of 25 psig, Nitrile seals for hydrocarbon resistance, and an overall length of 6.75 inches, this plug ensures efficient and effective testing without tube wall damage. Custom configurations are available to meet various size, pressure, temperature, and chemical requirements, making it a versatile choice for institutional and government procurement needs.
Product Specifications

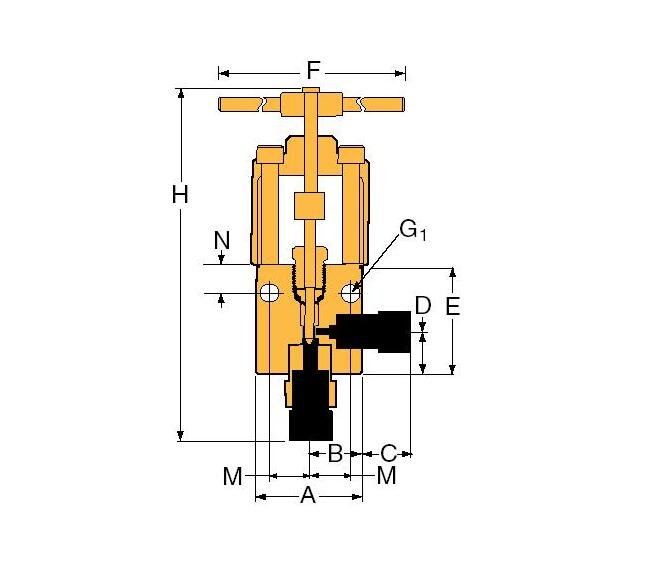

Specifications A Width
4.13 in | 104.78 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.39 mm
Specifications Connection Type
SF1000CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
4.13 in | 104.78 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
11.75 in | 298.45 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.03 in | 26.16 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
3.15
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
