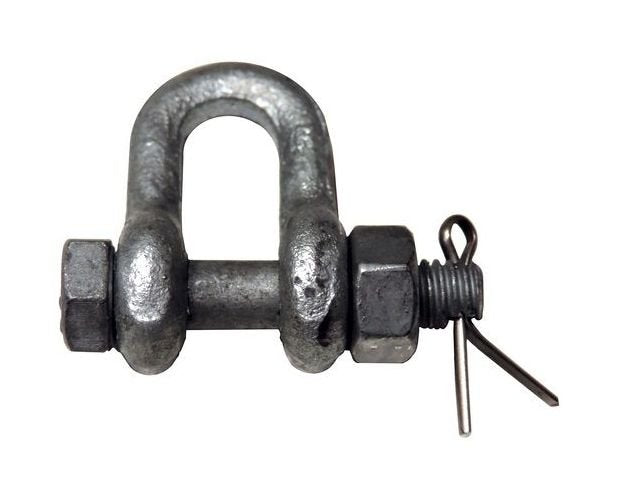

Bolt Type Shackles Dee Type 1 3/4in Hot Dip Galvanized
Bolt Type Shackles Dee Type 1 3/4in Hot Dip Galvanized
SKU:WIR-b617f5
Premium Bolt Type Shackles Dee Type: Hot Dip Galvanized, 25-ton WLL, Federal Spec RR-C-271D Grade A Class 3, Quenched & Tempered
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Bolt Type Shackles Dee Type 1 3/4in Hot Dip Galvanized
$89.99
Quantity: 1
Claim Your Seller Account
Bolt Type Shackles Dee Type 1 3/4in Hot Dip Galvanized
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bolt Type Shackles Dee Type Hot Dip Galvanized are forged to meet Federal Specification RR-C-271D, ensuring quality Grade A Class 3 construction. With a 25-ton working load limit, and 2.2x proof load, these shackles guarantee reliability and safety in lifting and towing operations. The quenched and tempered alloy pin enhances durability, making these shackles ideal for industrial and institutional applications.

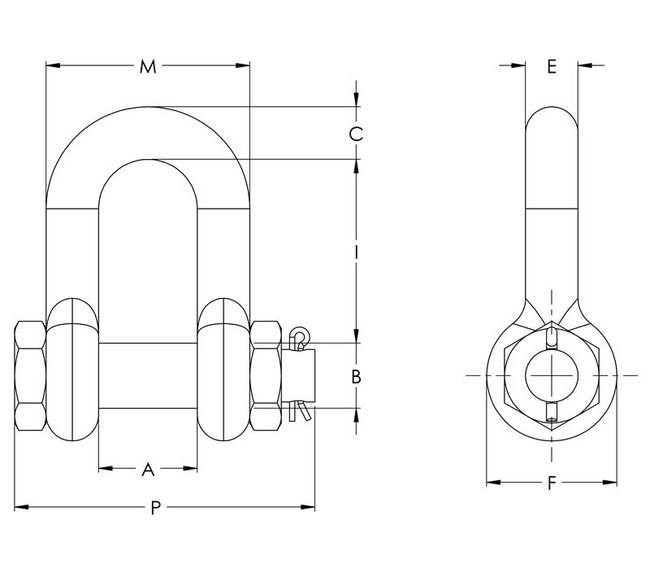

Product Specifications
Specifications A In
2.88
Specifications B In
2
Specifications C In
2.25
Specifications D In
7
Specifications E In
1.75
Specifications F In
4.19
Specifications I In
5.75
Specifications M In
6.38
Specifications Nominal Size In
1 3/4
Specifications P In
9.05
Specifications Weight Lbs
31.4
Specifications Wll Tons
25
CAGE
0T9L4
NAICS
332722
PSC
5306
