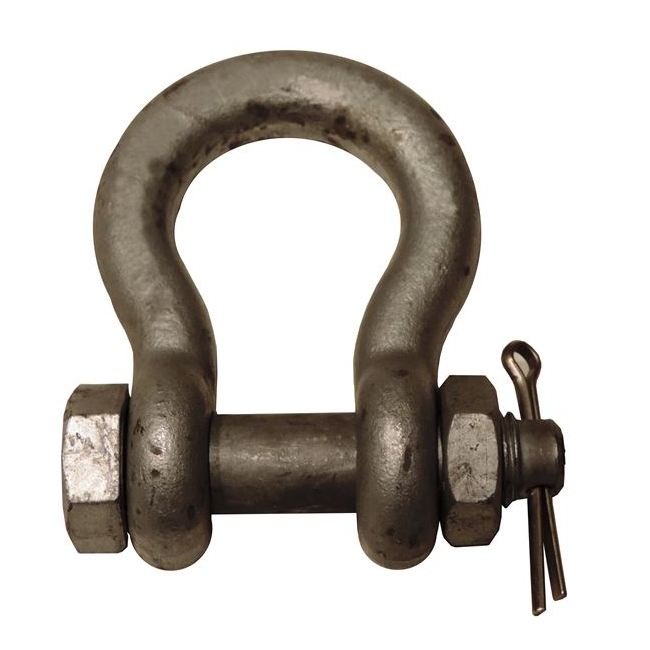

Bolt Type Shackles Hot Dip Galvanized Drop Forged

Bolt Type Shackles Hot Dip Galvanized Drop Forged

SKU:WIR-d86018

Meet Federal Spec RR-C-271D Grade A with these high-strength bolt type shackles. Perfect for heavy lifting tasks.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Bolt Type Shackles Hot Dip Galvanized Drop Forged

Bolt Type Shackles Hot Dip Galvanized Drop Forged

$49.99

Quantity: 1

Claim Your Seller Account

Bolt Type Shackles Hot Dip Galvanized Drop Forged

Bolt Type Shackles Hot Dip Galvanized Drop Forged

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bolt Type Shackles Hot Dip Galvanized Drop Forged are engineered to meet the stringent Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3 standards. Crafted with a quenched and tempered alloy pin, these shackles boast a robust design with a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit. Ideal for wire rope loops in lifting or towing applications, these shackles offer exceptional strength and durability.

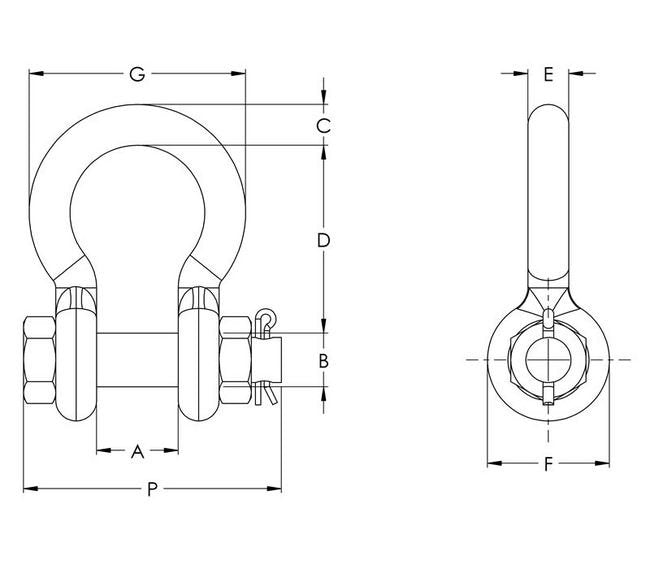

Product Specifications

Specifications A In
1.81
Specifications B In
1.25
Specifications Cross Reference
SAS118
Specifications C In
1.25
Specifications D In
4.25
Specifications E In
1.13
Specifications F In
2.69
Specifications G In
5.16
Specifications Nominal Size In
1 1/8
Specifications P In
5.9
Specifications Weight Lbs
8.27
Specifications Wll Tons
9 1/2
CAGE
0T9L4
NAICS
332722
PSC
5306
