Bolt Type Silicone Test Plug with By-Pass - 146-9 Series

Bolt Type Silicone Test Plug with By-Pass - 146-9 Series

HIG-934bc3

Reliable and durable Bolt Type Silicone Test Plug with By-Pass for precise pipeline testing up to 250 psig.

$59.99
$59.99
Sale

Initiate Order

Bolt Type Silicone Test Plug with By-Pass - 146-9 Series

Bolt Type Silicone Test Plug with By-Pass - 146-9 Series

$59.99

Quantity: 1

Claim Your Seller Account

Bolt Type Silicone Test Plug with By-Pass - 146-9 Series

Bolt Type Silicone Test Plug with By-Pass - 146-9 Series

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 146-9 Series Bolt Type Silicone Test Plug with By-Pass is engineered for precise testing of pipelines, featuring a Nitrile seal for optimal hydrocarbon resistance. With a rated pressure of 250 psig, this plug ensures reliable testing up to 1.01 inches minimum pipe inside diameter. Customizable configurations cater to various pressure, temperature, and chemical requirements, making it a versatile solution for institutional and government procurement needs. Ensure pipeline integrity with this durable, plated carbon steel plug.

Product Specifications

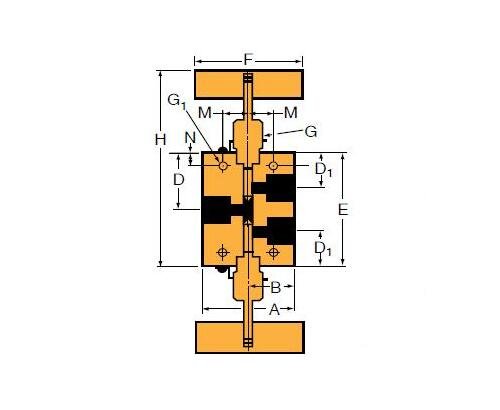

Specifications A Width
3.50 in | 88.90 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
1.75 in | 44.45 mm
Specifications Connection Type
Pipe
Specifications D1 Height
2.25 in | 57.15 mm
Specifications D Height
3.25 in | 82.55 mm
Specifications E Height
6.50 in | 165.10 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
9.75 in | 247.65 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Pipe Size
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
2.50
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way/2-Stem Manifold
Valve Maintenance 0
Repair Kits:add “R” to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).†Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
