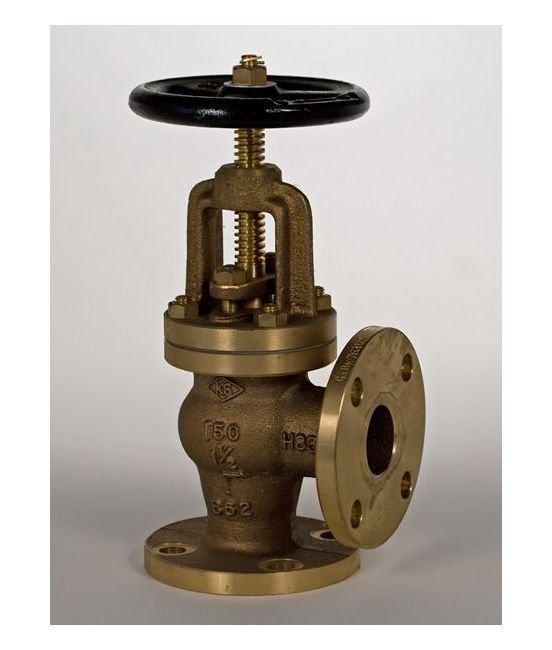

Bolted Bonnet Bronze Angle Valve - Class 150, OS&Y, SDNR
Bolted Bonnet Bronze Angle Valve - Class 150, OS&Y, SDNR
SKU:VAL-a5e902
Class 150 Bronze Angle Valve for precise flow control in industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Bolted Bonnet Bronze Angle Valve - Class 150, OS&Y, SDNR
$399.99
Quantity: 1
Claim Your Seller Account
Bolted Bonnet Bronze Angle Valve - Class 150, OS&Y, SDNR
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bolted Bonnet Bronze Angle Valve is designed for robust performance in industrial settings. Constructed with bronze body, brass seat, and bronze or stainless steel disc material, this valve ensures durability and efficient flow control. Featuring a handwheel actuator and flanged connection, it meets ANSI standards for reliable operation. With hydraulic inspections at 350 PSIG for shell and 225 PSIG for seat, this valve offers superior performance and longevity in critical applications.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications D2
7.50 in | 191 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
12.00 in | 305 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.25 in | 108 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2-1/2"
Specifications Stem Material
Brass
Specifications T
0.56 in | 14 mm
Specifications Weight
44 lb | 20.0 kg
