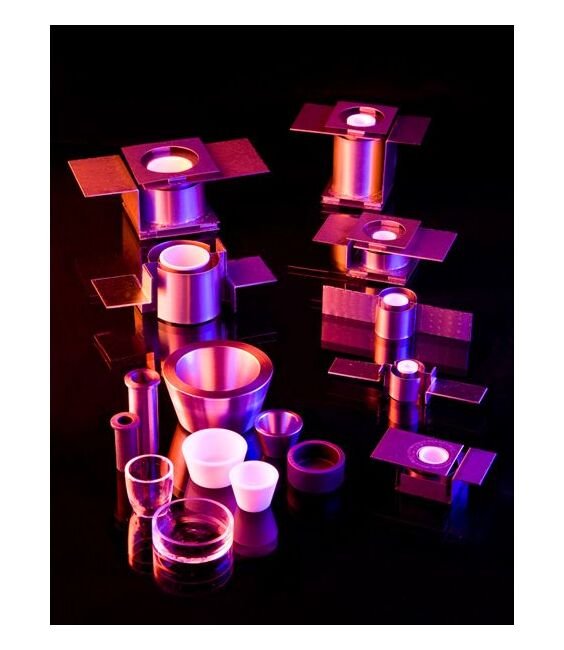

Boron Nitride Composite Crucible for CH-1, CH-10, CH-11 & ME-19 Heaters

Name: Boron Nitride Composite Crucible for CH-1, CH-10, CH-11 & ME-19 Heaters
Brand: R.D. Mathis Company
SKU: CRU-0acf02
Price: 49.99 USD
Availability: OutOfStock

SKU:CRU-0acf02

High-performance Boron Nitride Crucible for evaporation needs, with exceptional dielectric properties and corrosion resistance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The C9 Boron Nitride Composite Crucible is engineered for precise evaporation needs, featuring a 0.040 in wall thickness and straight wall design. Crafted with superior dielectric properties, this crucible ensures exceptional performance over a wide temperature range. Resistant to corrosive materials, it is ideal for thin film fabrication. Custom sizes available upon request, tailored to meet diverse institutional requirements.

Product Specifications

Features 0

Boron Nitride is similar to graphite in crystal structure.It is an excellent dielectric over a wide range of temperatures.It is not attacked by many materials used for thin film fabrication.All Boron Nitride crucibles should be slowly heated and thoroughly outgassed before use.

Manufacturing Notes 0

Custom Boron Nitride, Carbon, Tantalum and Molybdenum crucibles on request.

Specifications Crucible Height

1/2

Specifications Crucible Material

Boron Nitride Composite

Specifications Crucible Type

Straight Wall

Specifications Used With

Use with CH-1, CH-10, CH-11 and ME-19 Heaters B8B and ME18B Baskets

Specifications Wall Thickness

0.040 in

Boron Nitride Composite Crucible for CH-1, CH-10, CH-11 & ME-19 Heaters
