Boron Nitride Tapered Crucible for CH-5, CH-12 and CH-13 Heaters
Boron Nitride Tapered Crucible for CH-5, CH-12 and CH-13 Heaters
SKU:CRU-5be5cd
Precision Boron Nitride Crucible for high-temperature evaporation processes.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Boron Nitride Tapered Crucible for CH-5, CH-12 and CH-13 Heaters
$79.99
Quantity: 1
Claim Your Seller Account
Boron Nitride Tapered Crucible for CH-5, CH-12 and CH-13 Heaters
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Boron Nitride Tapered Crucible by R.D. Mathis Company is designed for precision evaporation processes. With a wall thickness of 0.060 in, this crucible offers excellent dielectric properties and high-temperature resistance. Ideal for thin film fabrication, it ensures optimal performance without material degradation. Custom sizes available upon request. Ensure compliance with industry standards and flawless outgassing for superior results.
Product Specifications
Features 0
Boron Nitride is similar to graphite in crystal structure.It is an excellent dielectric over a wide range of temperatures.It is not attacked by many materials used for thin film fabrication.All Boron Nitride crucibles should be slowly heated and thoroughly outgassed before use.
Manufacturing Notes 0
Custom Boron Nitride, Carbon, Tantalum and Molybdenum crucibles on request.

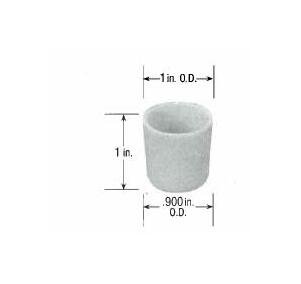

Specifications Crucible Height
1
Specifications Crucible Material
Boron Nitride
Specifications Crucible Type
Tapered
Specifications Used With
Use with CH-5, CH-12 and CH-13 Heaters and with B10 Basket
Specifications Wall Thickness
0.060 in
