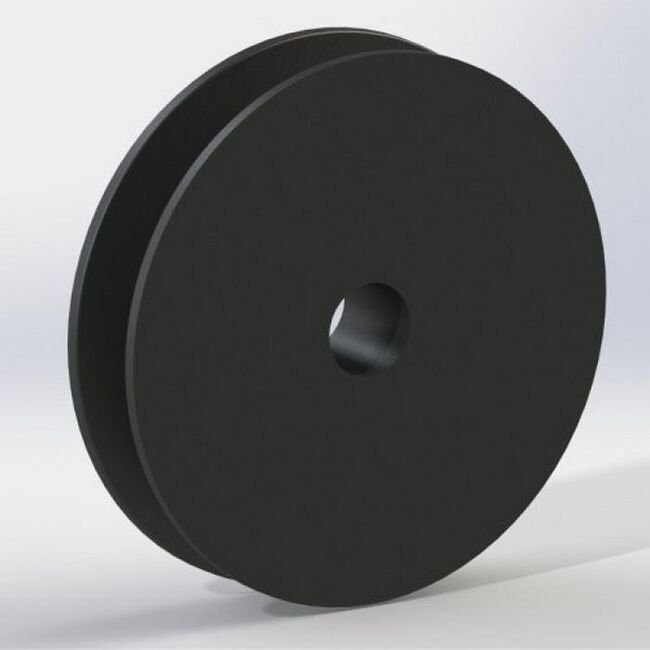

BP Series 0.128 Inch (in) Bore Diameter and 0.375 Inch (in) Outside Diameter Standard Acetal Pulley

Name: BP Series 0.128 Inch (in) Bore Diameter and 0.375 Inch (in) Outside Diameter Standard Acetal Pulley
Brand: Carl Stahl Sava Industries
SKU: BPS-06e783
Price: 49.99 USD
Availability: OutOfStock

SKU:BPS-06e783

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

BP Series pulleys are made of Delrin. The chemical composition and the highly crystalline molecular structure of Delrin is the key to these pulleys physical properties. The high mechanical tensile strength and rigidity, natural lubricity, high resistance to moisture, gasoline, oil, UV impact, and neutral chemicals makes these pulleys highly durable. Moreover, high resistance against deformation due to heat impacts (up to 230º F) and good electrical insulating are further characteristics.

Product Specifications

Note

This product has a minimum quantity of 5.

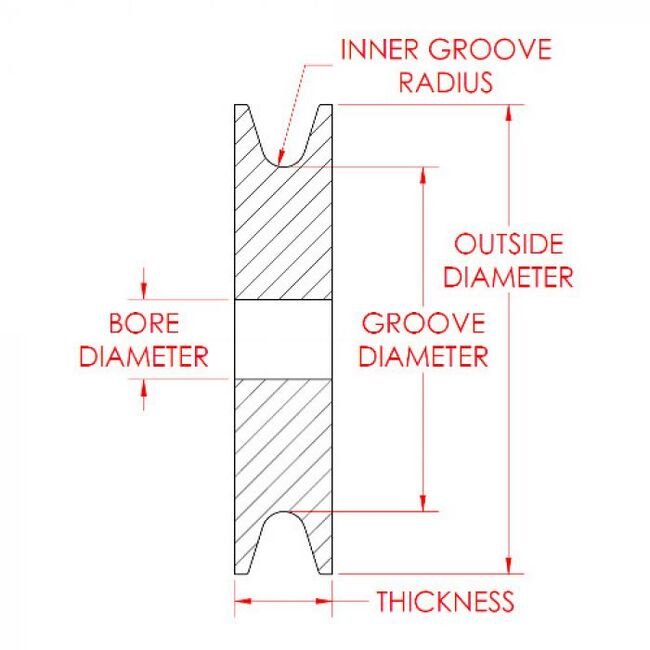

Technical Specs Bore Diameter

0.128 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Acetal

Technical Specs Cable Type

Standard

Technical Specs Color

Black

Technical Specs Inner Groove Radius

0.015 in

Technical Specs Maximum Mating Cable Diameter

0.032 in

Technical Specs Outer Groove Diameter

0.31 in

Technical Specs Outside Diameter

0.375 in

Technical Specs Part

BP2031

Technical Specs Thickness

0.093 in

BP Series 0.128 Inch (in) Bore Diameter and 0.375 Inch (in) Outside Diameter Standard Acetal Pulley
