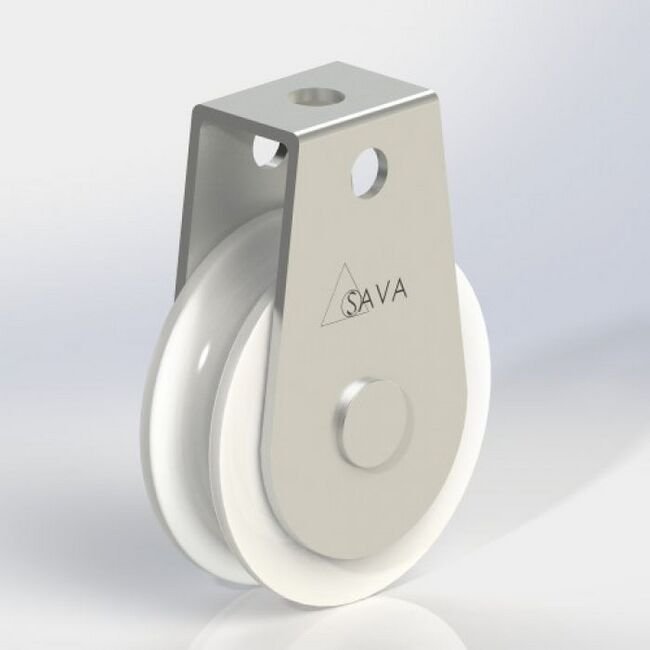

BP Series 0.135 Inch (in) Inner Groove Radius Stainless Steel Nylon Bracket Pulley

Name: BP Series 0.135 Inch (in) Inner Groove Radius Stainless Steel Nylon Bracket Pulley
Brand: Carl Stahl Sava Industries
SKU: BPS-a2aef9
Price: 49.99 USD
Availability: OutOfStock

SKU:BPS-a2aef9

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our quality stainless steel bracket systems and nylon pulleys for wire rope are designed to support your processes. Available in different bracket and pulley sizes, they can be top mount pulleys, side mount pulleys or eye mount pulleys. The maximum safe working load is determined by the end user. We generally advise a 3:1 safety factor at least (exclusive of any shock load). For large volumes, specially designed, customized brackets can be manufactured.

Product Specifications

Note

This product has a minimum quantity of 5.

Technical Specs Bracket Material

Stainless Steel

Technical Specs Bracket Style

Side Mount | Top Mount

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Nylon

Technical Specs Cable Type

Bracket

Technical Specs Inner Groove Radius

0.135 in

Technical Specs Maximum Mating Cable Diameter

0.250 in

Technical Specs Outside Diameter

1.375 in

Technical Specs Part

BP4100

Technical Specs Thickness

0.4 in

BP Series 0.135 Inch (in) Inner Groove Radius Stainless Steel Nylon Bracket Pulley
