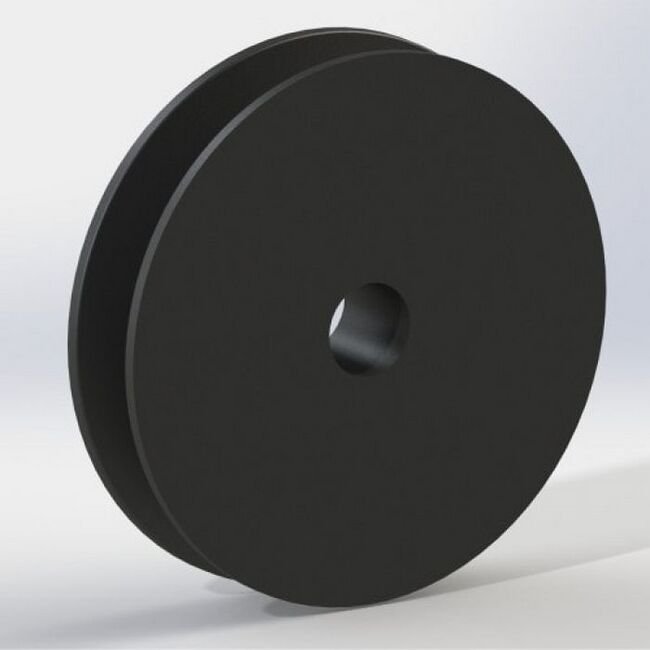

BP Series 0.251 Inch (in) Bore Diameter and 1 Inch (in) Outside Diameter Standard Acetal Pulley

Name: BP Series 0.251 Inch (in) Bore Diameter and 1 Inch (in) Outside Diameter Standard Acetal Pulley
Brand: Carl Stahl Sava Industries
SKU: BPS-f16152
Price: 49.99 USD
Availability: OutOfStock

SKU:BPS-f16152

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

BP Series pulleys are made of Delrin. The chemical composition and the highly crystalline molecular structure of Delrin is the key to these pulleys physical properties. The high mechanical tensile strength and rigidity, natural lubricity, high resistance to moisture, gasoline, oil, UV impact, and neutral chemicals makes these pulleys highly durable. Moreover, high resistance against deformation due to heat impacts (up to 230º F) and good electrical insulating are further characteristics.

Product Specifications

Note

This product has a minimum quantity of 5.

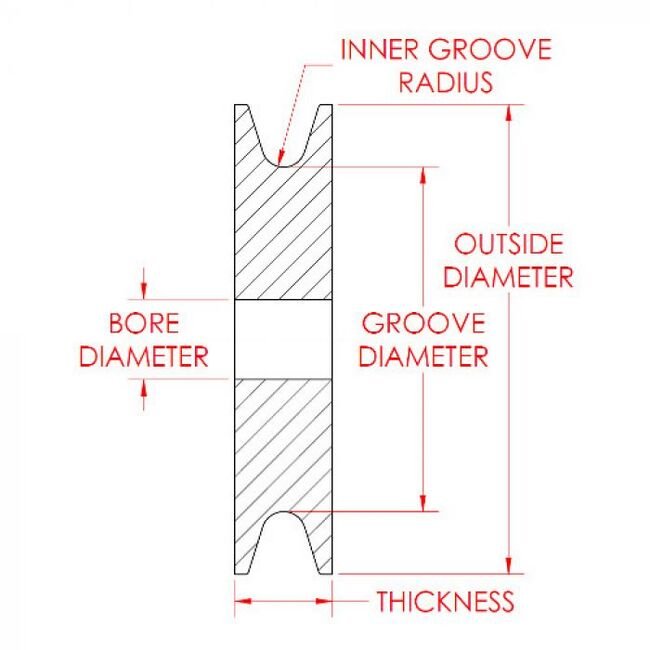

Technical Specs Bore Diameter

0.251 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Acetal

Technical Specs Cable Type

Standard

Technical Specs Color

Black

Technical Specs Inner Groove Radius

0.025 in

Technical Specs Maximum Mating Cable Diameter

0.047 in

Technical Specs Outer Groove Diameter

0.813 in

Technical Specs Outside Diameter

1 in

Technical Specs Part

BP3081

Technical Specs Thickness

0.17 in

BP Series 0.251 Inch (in) Bore Diameter and 1 Inch (in) Outside Diameter Standard Acetal Pulley
