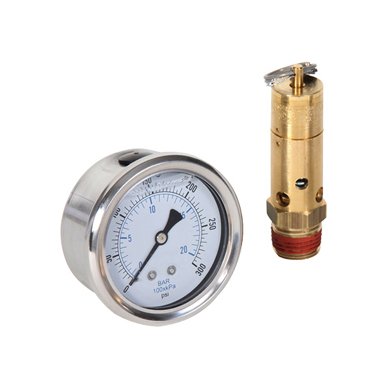

Brass 1/2" 165 PSI Safety Relief Valve Kit with Liquid Filled Gauge
Brass 1/2" 165 PSI Safety Relief Valve Kit with Liquid Filled Gauge
SKU:REC-3ea917
Enhance your receiver tank with our high-performance Safety Relief Valve Kit & Pressure Gauge, ensuring safety and accuracy.
Regular price
$50.10
Regular price
Sale price
$50.10
Unit price
per
Initiate Order
Brass 1/2" 165 PSI Safety Relief Valve Kit with Liquid Filled Gauge
$50.10
Quantity: 1
Claim Your Seller Account
Brass 1/2" 165 PSI Safety Relief Valve Kit with Liquid Filled Gauge
$50.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your receiver tank with our Brass 1/2" 165 PSI Safety Relief Valve Kit. This kit includes a safety valve with precise tolerance and maximum temperature of 250°F. The liquid-filled gauge dampens vibrations, extends lifespan, and ensures accuracy. Suitable for hydraulic, pneumatic systems, and industrial applications.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size
1/2 in
Specifications Dial Size
2.5
Specifications General Description
Safety Valve Information: ⢠Set Pressure Tolerances: ± 3% of Set Pressure ⢠Maximum Temperature: 250 F ⢠Construction: All Brass With Zinc Plated Music Wire Spring ⢠Resilient Silicone Rubber Pad Ensures Valve is Bubble Tight to Within 10% of Set Pressure ⢠Stamped With the UV and NB Symbols ⢠Loc-Tite Vibra Seal Standard The Liquid Filled Gauge Dampens the Effect of Pulsation and Vibration, While Also Perpetually Lubricating the Movement and Keeping Contaminates Such As Dirt Away From All Moving Parts Which Will Extend the Life of the Gauge. Typically Used on Hydraulic & Pneumatic Systems as Well as Any Commercial or Industrial Applications Not Corrosive to Brass and Bronze Wetted Parts Where Silicone Filling is Suitable For Use. ⢠Built In Snubber ⢠Stainless Steel Case and Bezel ⢠Copper Alloy Wetted Parts ⢠Polycarbonate Lens ⢠Liquid Filled ⢠Accuracy : 2-1-2% of Span ASME B40.1 Grade A ⢠Dual Scale: PSI/Bar (x 100=kPa) Standard ⢠Ambient Temperature: Filled: 30 F to 160 F ⢠Design Meets or Exceeds ASME B40.100 Pressure Gauge Standar
Specifications Maximum Rated Flow
299 scfm
Specifications Maximum Rated Pressure
165 psi
Specifications Web Price
50.10 USD
