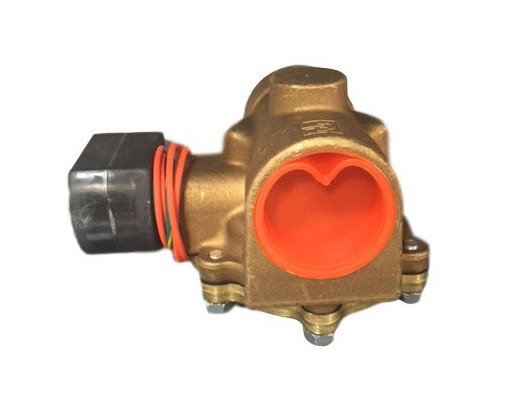

Brass 2-Way Internal Pilot Operated Solenoid Valve
Brass 2-Way Internal Pilot Operated Solenoid Valve
SKU:AIR-9af788
High-performance Brass Solenoid Valve for medium to high pressure applications, offering superior flow control and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Brass 2-Way Internal Pilot Operated Solenoid Valve
$89.99
Quantity: 1
Claim Your Seller Account
Brass 2-Way Internal Pilot Operated Solenoid Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass 2-Way Internal Pilot Operated Solenoid Valve is a reliable choice for medium to high pressure applications, ensuring optimal flow control. Designed with a focus on durability and performance, this valve features a 1 1/4 port size, 1 1/8 orifice size, and a high flow factor (Cv) of 15.0. With a maximum operating pressure ranging from 5 to 150 PSI for various media types like air, inert gases, water, and light oil, this valve offers versatility and efficiency in diverse settings. The NBR seal type and high max media temperature of 180°F ensure long-lasting functionality under demanding conditions. Ideal for applications in irrigation systems, fire suppression equipment, and more, this valve is a top choice for dependable fluid control.
Product Specifications
Specifications Flow Factor Cv
15.0
Specifications Manufacturer
Parker
Specifications Max Media Temp F
180
Specifications Operating Pressure Psi
Min. - 5Air, Inert Gas - 150Water - 150Light Oil - 100
Specifications Orifice Size In
1 1/8
Specifications Port Size
1 1/4
Specifications Seal Type
NBR
Specifications Watt
6
