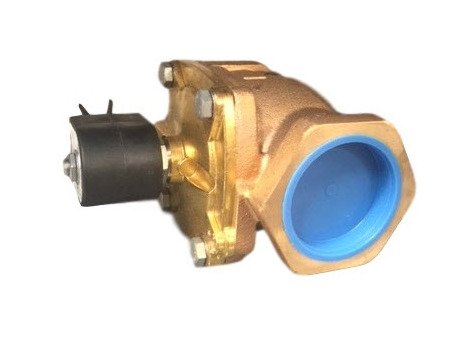

Brass 2-Way Pilot Operated Solenoid Valve
Brass 2-Way Pilot Operated Solenoid Valve
SKU:AIR-6533a3
High-performance Brass 2-Way Pilot Solenoid Valve for medium-high pressure applications. Ideal for air, gases, water, and light oil.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Brass 2-Way Pilot Operated Solenoid Valve
$89.99
Quantity: 1
Claim Your Seller Account
Brass 2-Way Pilot Operated Solenoid Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass 2-Way Pilot Operated Solenoid Valve is expertly designed for medium to high pressure applications, ensuring optimal flow performance. With a 1 1/4 port size and a 1 1/8 orifice size, this valve boasts a flow factor (Cv) of 15.0. Operating under pressures ranging from 5 to 125 PSI, it is suitable for various fluids including lubricated air, inert gases, water, and light oil. This valve, with a maximum media temperature of 185°F and NBR seal type, is a reliable choice for applications such as irrigation systems, cooling equipment, air compressors, and more. Manufactured by Parker, it meets stringent industry standards for quality and performance.
Product Specifications
Specifications Flow Factor Cv
15.0
Specifications Manufacturer
Parker
Specifications Max Media Temp F
185
Specifications Operating Pressure Psi
Min. - 5Air, Inert Gas - 125Water - 125Light Oil - 125
Specifications Orifice Size In
1 1/8
Specifications Port Size
1 1/4
Specifications Seal Type
NBR
Specifications Watt
10
