Brass 4-Inch Companion Flange
Brass 4-Inch Companion Flange
SKU:FIT-b719ec
Durable 4-inch brass companion flange for secure pipe connections. Meets federal procurement standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass 4-Inch Companion Flange
$24.99
Quantity: 1
Claim Your Seller Account
Brass 4-Inch Companion Flange
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass 4-Inch Companion Flange is designed for reliable pipe connection applications. With an outer diameter of 9 inches, a sturdy flange thickness of 11/16 inches, and a bolt circle diameter of 7 1/2 inches, this flange ensures a secure fit. Compliant with federal procurement standards and suitable for a wide range of institutional uses, this brass flange is a durable and cost-effective choice for your piping needs.

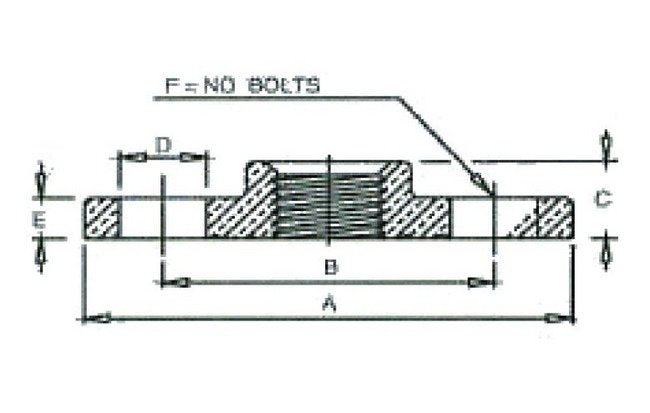

Product Specifications
Specifications Diameter Of Bolt Circle B
7 1/2
Specifications Diameter Of Bolt Hole D
3/4
Specifications Flange Thickness E
11/16
Specifications Height C
1 5/16
Specifications No Of Bolts F
8
Specifications Od Of Flange A
9
Specifications Size
4 inches
