Brass Angle Sillcock with No Kink Valve - 1/2 Inch, 125 PSI
Brass Angle Sillcock with No Kink Valve - 1/2 Inch, 125 PSI
SKU:VAL-d43afe
Durable Brass Angle Sillcock with No Kink Valve - Ideal for Various Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve - 1/2 Inch, 125 PSI
$29.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve - 1/2 Inch, 125 PSI
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

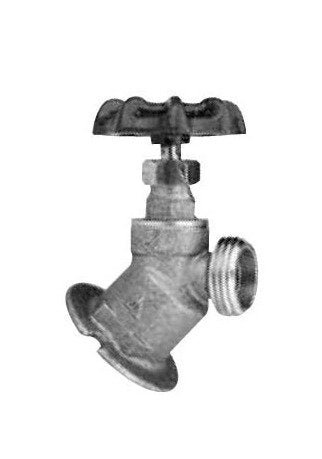

The Brass Angle Sillcock with No Kink Valve is a durable and reliable valve suitable for various applications. Made of high-quality brass, this valve can withstand pressures up to 125 PSI at 180°F. Featuring FIPS x Hose end size, this valve ensures a secure connection. With dimensions of H: 2.52", D: 2.16", L: 1.10", and C: 1.35", it offers easy installation. This valve complies with ANSI/NSF 61-9 standards, making it ideal for institutional and government procurement.
Product Specifications
Material List 0

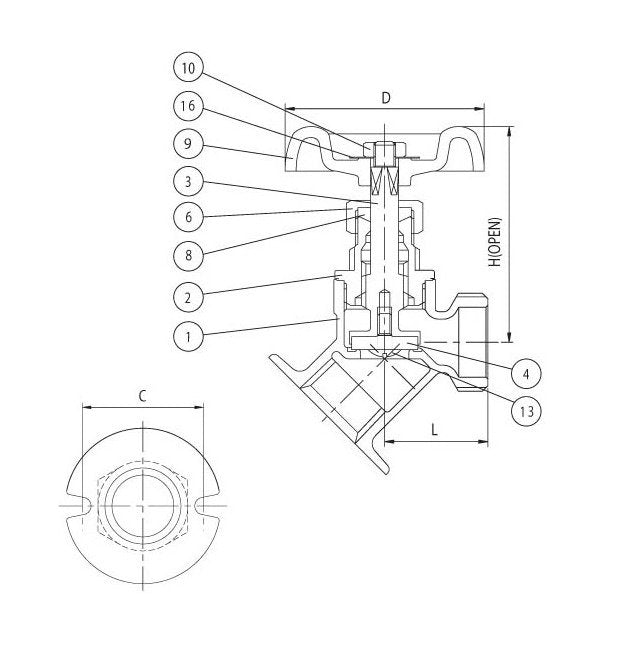

No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
58.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension C
1.35
Specifications Dimension D
2.16
Specifications Dimension H
2.52
Specifications Dimension L
1.10
Specifications End Size
FIPS x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
1/2 inches
