Brass Angle Sillcock with No Kink Valve 125 PSI
Brass Angle Sillcock with No Kink Valve 125 PSI
SKU:VAL-a8c48b
Durable Brass Angle Sillcock with 125 PSI pressure rating, no kink valve, and ANSI/NSF 61-9 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve 125 PSI
$29.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve 125 PSI
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

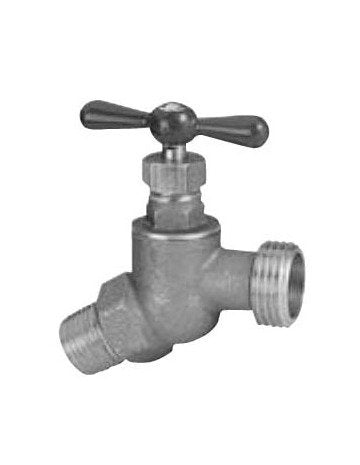

The Brass Angle Sillcock and No Kink Valve 125 PSI is a durable and reliable solution for water control. Constructed with high-quality cast brass materials, it offers exceptional performance under pressure. With a pressure rating of 125 PSI at 180°F, a reliable no kink valve, and a size of 3/4 inches, this product ensures efficient water flow for various applications. The inclusion of NBR disc, graphite packing, and a cast iron hand wheel further enhances its functionality and longevity. Compliant with ANSI/NSF 61-9 standards, this angle sillcock is ideal for both consumer and institutional buyers seeking quality and performance.
Product Specifications

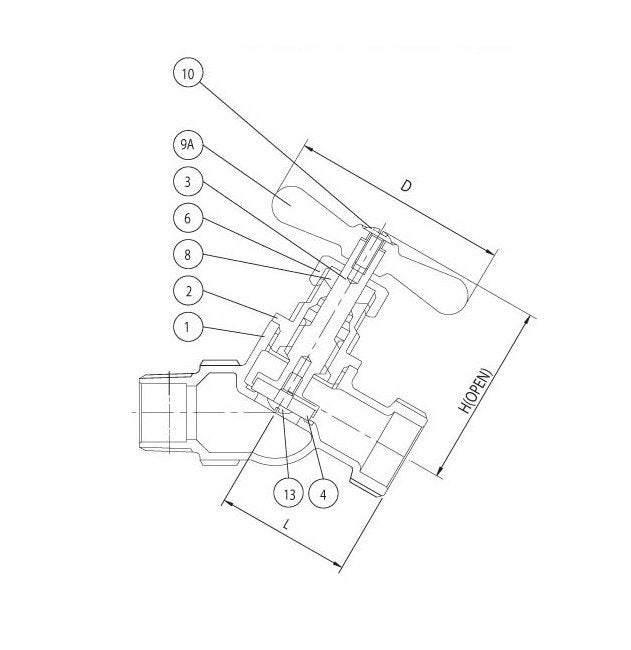

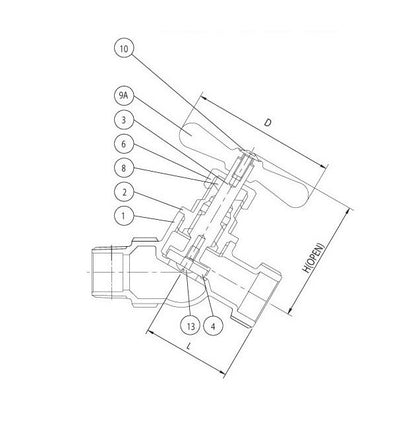

Material List 0
No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
53.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension D
2.16
Specifications Dimension H
2.28
Specifications Dimension L
1.46
Specifications End Size
MIPS x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
3/4 inches
