Brass Angle Sillcock with No Kink Valve 125 PSI
Brass Angle Sillcock with No Kink Valve 125 PSI
SKU:VAL-f2e683
Durable Brass Angle Sillcock with No Kink Valve, 125 PSI, 1/2-inch size, FIPS x Hose, ANSI/NSF 61-9 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve 125 PSI
$29.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve 125 PSI
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Angle Sillcock and No Kink Valve is a durable and reliable solution for controlling water flow in hose beds. Constructed from high-quality brass, this valve boasts a pressure rating of 125 PSI at 180°F, ensuring efficient performance in various conditions. The valve features a 1/2-inch size, FIPS x Hose end connections, and a sturdy design with components like a cast brass body, stem, and bonnet. With NBR disc, graphite packing, and zinc alloy handle, this valve offers smooth operation and long-lasting durability. Compliant with ANSI/NSF 61-9 standards, this valve is suitable for both consumer and institutional applications.
Product Specifications

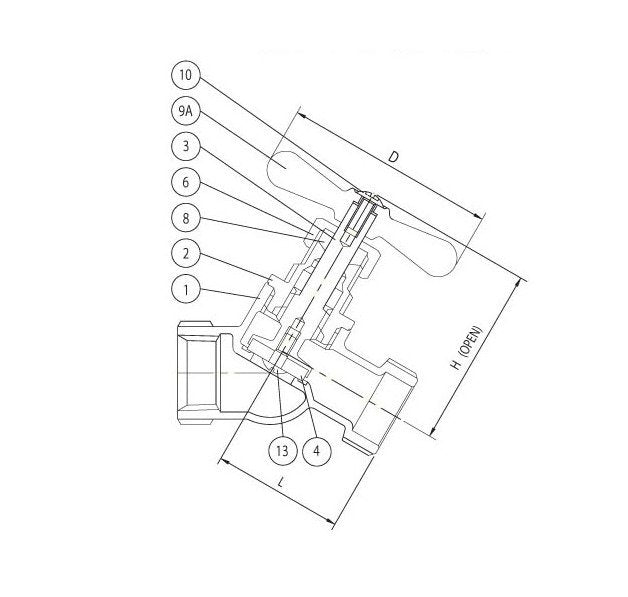

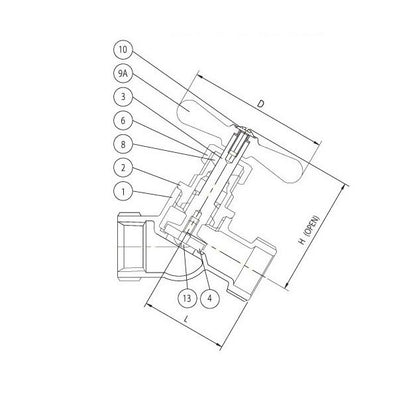

Material List 0
No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
48.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension D
2.16
Specifications Dimension H
2.28
Specifications Dimension L
1.46
Specifications End Size
FIPS x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
1/2 inches
