Brass Angle Sillcock with No Kink Valve 125 PSI - 1/2 inches
Brass Angle Sillcock with No Kink Valve 125 PSI - 1/2 inches
SKU:VAL-869127
Durable Brass Angle Sillcock & No Kink Valve with 125 PSI pressure rating. Meets ANSI/NSF 61-9 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve 125 PSI - 1/2 inches
$29.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve 125 PSI - 1/2 inches
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Angle Sillcock and No Kink Valve is a durable and reliable solution for both consumer and institutional buyers. With a pressure rating of 125 PSI at 180°F, this valve ensures optimal performance. Made of high-quality brass materials and featuring a NBR disc, graphite gland packing, and a zinc alloy handle, it offers superior corrosion resistance and longevity. Designed to meet ANSI/NSF 61-9 standards, this valve is suitable for a wide range of applications, from residential to institutional settings.
Product Specifications

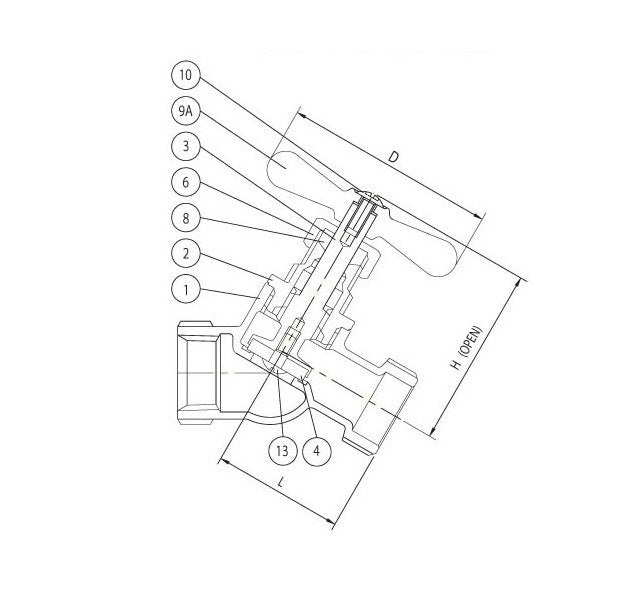

Material List 0
No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
48.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension D
2.16
Specifications Dimension H
2.28
Specifications Dimension L
1.46
Specifications End Size
MIPS x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
1/2 inches
