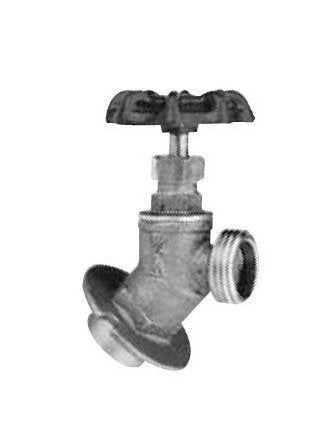

Brass Angle Sillcock with No Kink Valve 125 PSI, 1/2 inches
Brass Angle Sillcock with No Kink Valve 125 PSI, 1/2 inches
SKU:VAL-9d2bd6
Durable Brass Angle Sillcock with No Kink Valve, 125 PSI, ANSI/NSF 61-9 certified
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve 125 PSI, 1/2 inches
$39.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve 125 PSI, 1/2 inches
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Angle Sillcock and No Kink Valve is a premium solution for efficient water control in institutional and consumer settings. Constructed with durable brass material, this valve ensures reliable performance with a pressure rating of 125 PSI at 180°F. Its ANSI/NSF 61-9 certification guarantees compliance with stringent quality standards. The valve features a corrosion-resistant design with a cast brass body, bonnet, and stem, along with NBR disc and graphite packing for enhanced durability. With easy installation and precise flow control, this valve is ideal for hose bed applications.
Product Specifications

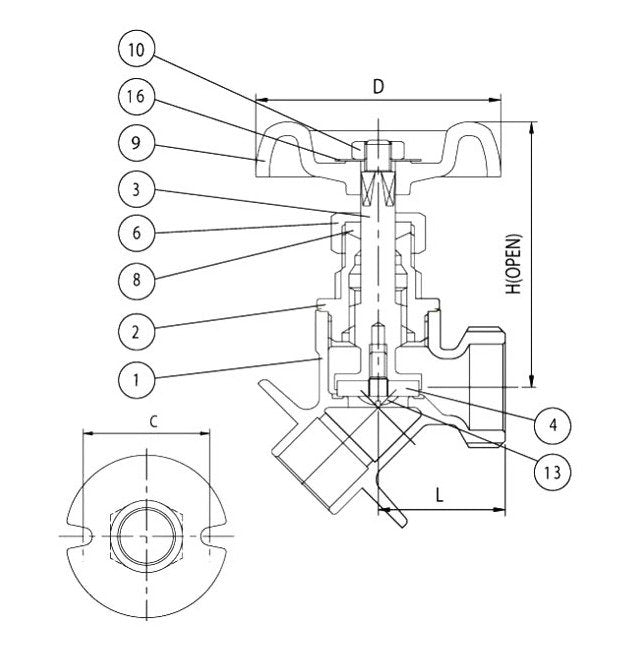

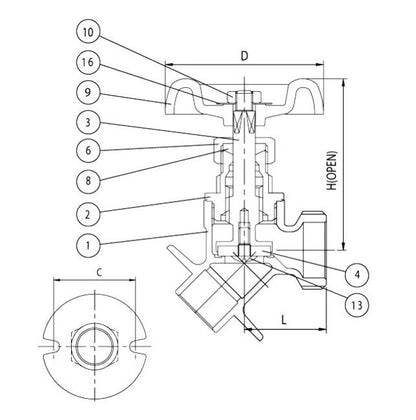

Material List 0
No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
56.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension C
1.35
Specifications Dimension D
2.16
Specifications Dimension H
2.52
Specifications Dimension L
1.10
Specifications End Size
C x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
1/2 inches
