Brass Angle Sillcock with No Kink Valve 125 PSI
Brass Angle Sillcock with No Kink Valve 125 PSI
SKU:VAL-43cf27
Reliable Brass Valve for Hose Beds, 125 PSI, Brass Construction, NSF 61-9 Certified
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve 125 PSI
$39.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve 125 PSI
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Angle Sillcock and No Kink Valve 125 PSI is a durable and reliable solution for water control in institutional and consumer settings. Constructed from high-quality cast brass, this valve is designed to withstand pressures up to 125 PSI at 180°F. With a 3/4-inch size and ANSI/NSF 61-9 certification, this valve guarantees performance and safety. Its components, including the cast brass body, bonnet, and stem, ensure long-lasting functionality. The valve also features a NBR disc, brass packing nut, graphite gland packing, and a cast iron hand wheel with a zinc alloy handle. This product is a perfect choice for hose bed applications.
Product Specifications

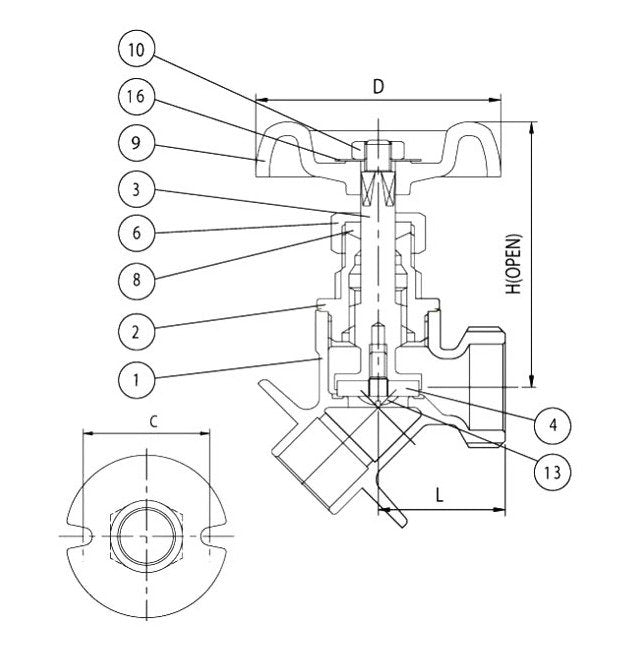

Material List 0
No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
60.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension C
1.61
Specifications Dimension D
2.16
Specifications Dimension H
2.52
Specifications Dimension L
1.10
Specifications End Size
C x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
3/4 inches
