Brass Angle Sillcock with No Kink Valve 125 PSI - 3/4 inches
Brass Angle Sillcock with No Kink Valve 125 PSI - 3/4 inches
SKU:VAL-3ac98c
High-quality Brass Angle Sillcock with No Kink Valve, 125 PSI, ensures durability and reliability. Compliant with ANSI/NSF 61-9.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Angle Sillcock with No Kink Valve 125 PSI - 3/4 inches
$29.99
Quantity: 1
Claim Your Seller Account
Brass Angle Sillcock with No Kink Valve 125 PSI - 3/4 inches
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Angle Sillcock and No Kink Valve combination is designed for optimal performance with pressure resistance up to 125 PSI at 180°F. Made of high-quality brass materials, including a cast brass body, bonnet, and stem, this valve ensures durability and reliability. The NBR disc, brass packing nut, and graphite gland packing provide a tight seal to prevent leaks. With a zinc alloy handle, cast iron handwheel, and brass wheel nut, this valve offers easy operation and maintenance. Compliant with ANSI/NSF 61-9 standards, this product is ideal for both residential and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

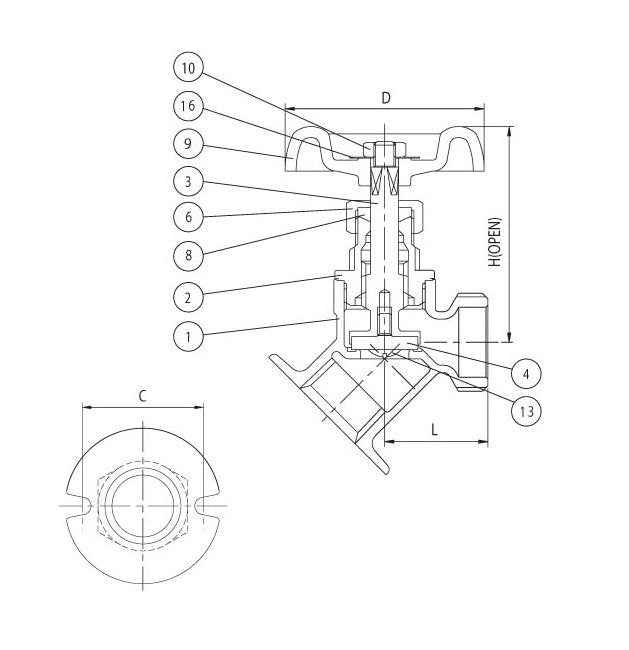

No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
63.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension C
1.61
Specifications Dimension D
2.16
Specifications Dimension H
2.52
Specifications Dimension L
1.10
Specifications End Size
FIPS x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
3/4 inches
