Enhance your fluid control with our Brass Angle-Style Ball Valve from the EB Series. Crafted from durable brass, this valve features FNPT connections, a Cv of 0.75, and a modified PTFE packing for optimal performance. With a working pressure of 2500 psig and a temperature range of -65 to 300°F, this valve ensures reliability in diverse applications. The orange Nylon handle with a Stainless Steel insert provides easy operation, while its compact dimensions make it ideal for space-restricted installations.
Product Specifications

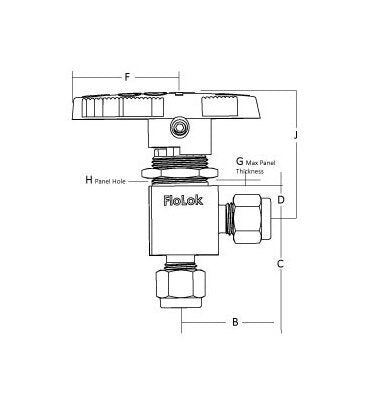

Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.9 mm
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Cv
0.75
Specifications Handle Color
Orange
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.75 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
Angle
Specifications Ssp Pn
43GA4PF-B
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
