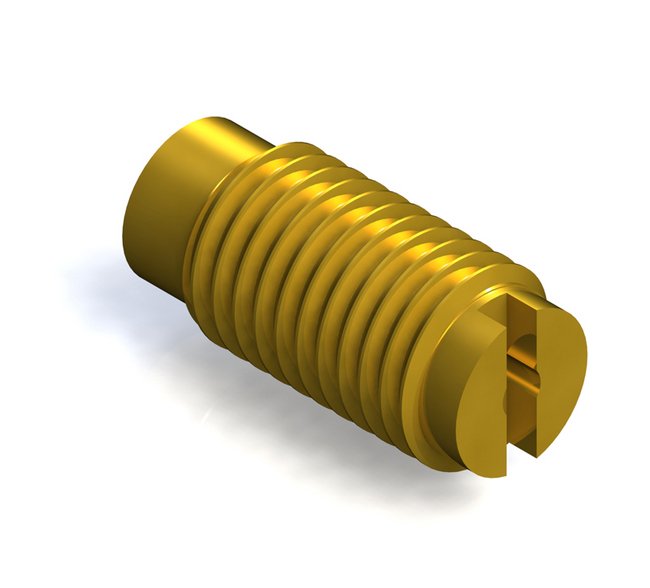

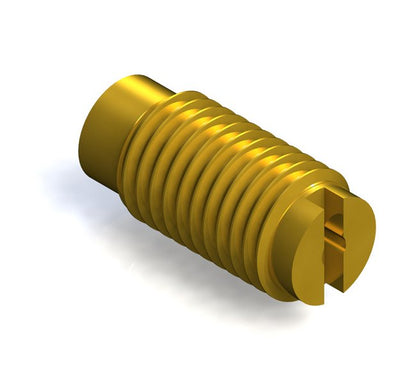

Brass Ball Check Valve with 304 SS Ball - Male Threaded Insert, Metal Seat
Brass Ball Check Valve with 304 SS Ball - Male Threaded Insert, Metal Seat
SKU:CHE-870293
Premium Brass Ball Check Valve with 304 SS Ball for tight shut-off, high pressure, and max. temp of 300°F
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Brass Ball Check Valve with 304 SS Ball - Male Threaded Insert, Metal Seat
$25.99
Quantity: 1
Claim Your Seller Account
Brass Ball Check Valve with 304 SS Ball - Male Threaded Insert, Metal Seat
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Ball Check Valve features a 304 SS ball and a metal seat, ensuring reliable performance in demanding environments. With a CV of 0.190 and a maximum operating pressure of 200 psig, this valve excels in maintaining tight shut-off capabilities. Designed with a 7/16-20 UNF Male Threaded Insert and O-ring seal, it offers ease of installation and secure connections. Operating efficiently at temperatures up to 300°F, this valve is ideal for industrial applications requiring precision flow control and minimal seat leakage. Compliant with federal procurement standards and industry certifications, it guarantees quality and durability for both consumer and institutional buyers.
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
