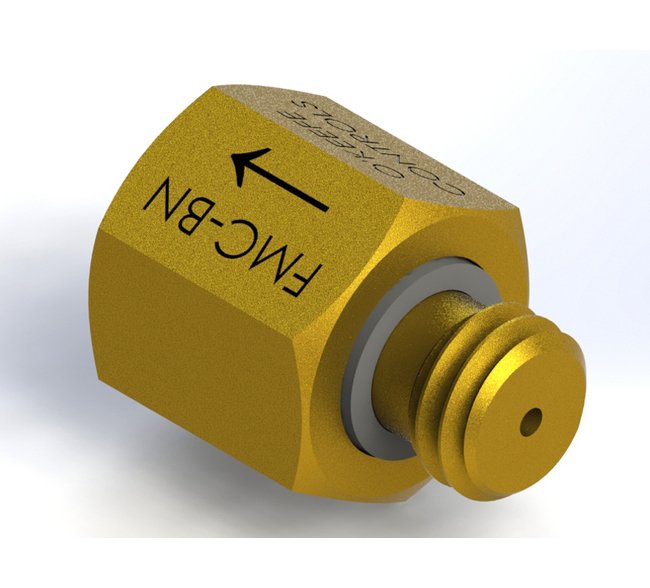

Brass Ball Type Check Valve, NPT Connection - 10-32 UNF
Brass Ball Type Check Valve, NPT Connection - 10-32 UNF
SKU:CHE-a9f7ae
Reliable Brass Ball Check Valve for unidirectional flow in fluid systems. Achieve efficiency and durability with our quality valve.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Ball Type Check Valve, NPT Connection - 10-32 UNF
$24.99
Quantity: 1
Claim Your Seller Account
Brass Ball Type Check Valve, NPT Connection - 10-32 UNF
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with our Brass Ball Type Check Valve featuring Buna-N ball material and Viton seal for reliable performance. With a cracking pressure of 125 psig, this valve ensures unidirectional flow, preventing reverse flow. Its metal to metal construction and low seat leakage make it ideal for various applications. Experience long life operation and cost-efficiency with this valve that meets stringent industry standards for quality and performance.
Product Specifications
Dimensions Orifice Diameter
0.031 in
Dimensions Total Length
0.485 in
Dimensions Width Across Flats Hex
5/16 in
Features Features
All metal construction option Long life operation Low cost
Flow Data Air Flow At 100 Psig
40 L/min
Flow Data Air Flow At 25 Psig
20 cm³/min
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
31
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
