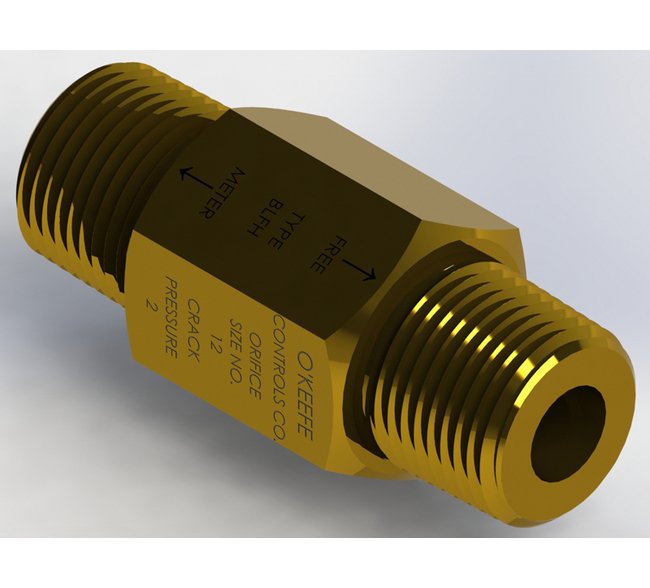

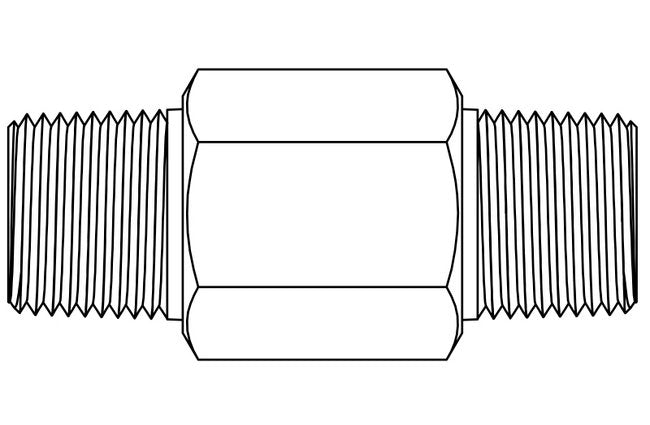

Brass Ball Type Fixed Flow Control NPT Nipple
Brass Ball Type Fixed Flow Control NPT Nipple
SKU:FLO-2a1742
Precision Brass Ball Type Flow Control for liquids & gases, high-pressure capacity, durable construction
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Brass Ball Type Fixed Flow Control NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Brass Ball Type Fixed Flow Control NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

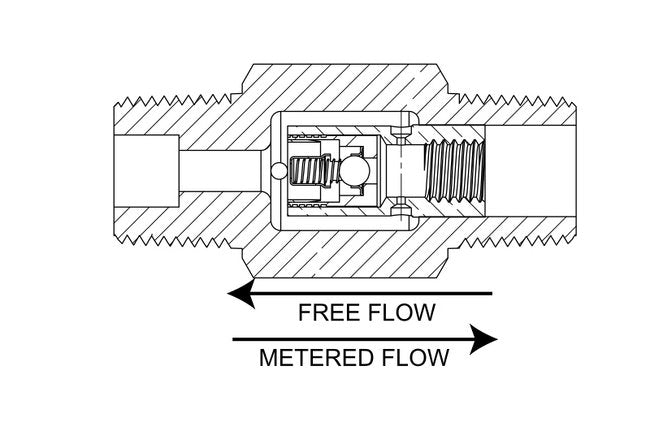

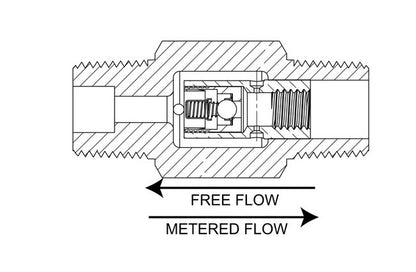

The Brass Ball Type Fixed Flow Control NPT Nipple is a precision-engineered solution for controlling flow in both liquid and gas applications. Featuring an orifice diameter of 0.047 inches and a durable brass construction with 304 SS ball material, this fixed flow control ensures reliable operation. With a maximum operating pressure of 200 psig and a choice of tamperproof orifice and cracking pressure, it offers high-pressure capacity and long-lasting performance. Ideal for institutional and government buyers requiring precision control and durability.
Product Specifications
Dimensions Orifice Diameter
0.047 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.129
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
2.69
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
47
Specifications Orifice Cv Return
0.048
Specifications Screened
None
