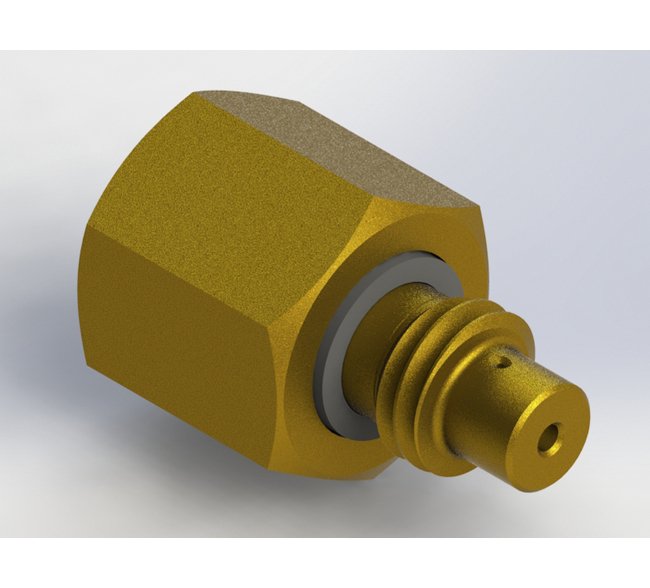

Brass Ball Type Fixed Flow Control UNF/UNC Adapter
Brass Ball Type Fixed Flow Control UNF/UNC Adapter
SKU:FLO-b61337
Achieve precise flow regulation with our Brass Ball Type Fixed Flow Control UNF/UNC Adapter featuring stainless steel or Buna-N ball and precision orifice.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Brass Ball Type Fixed Flow Control UNF/UNC Adapter
$25.99
Quantity: 1
Claim Your Seller Account
Brass Ball Type Fixed Flow Control UNF/UNC Adapter
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Ball Type Fixed Flow Control UNF/UNC Adapter is a cost-effective solution designed for precise flow regulation. Featuring a stainless steel or Buna-N ball along with a precision orifice, this flow control ensures free flow in one direction and metered flow in the opposite direction. With 10-32 threads and options for set screw or male/female fitting, this adapter offers a low flow coefficient of 0.0015. Crafted from high-quality brass with Viton seals and Buna-N ball, it can withstand up to 180°F and 125 psig. Perfect for applications requiring reliable and accurate flow control.
Product Specifications
Dimensions Orifice Diameter
0.008 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Low Flow Coefficient
0.0015
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
8
Specifications Screened
None
Specifications Seal Material
Viton
