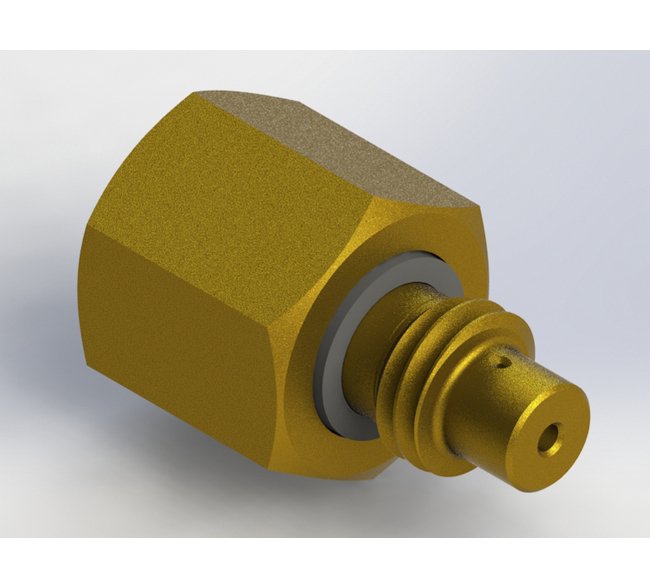

Brass Ball Type Fixed Flow Controls UNF/UNC Adapter
Brass Ball Type Fixed Flow Controls UNF/UNC Adapter
SKU:FLO-a1298c
Precise Brass Ball Fixed Flow Control with 10-32 UNF/UNC Connections & 0.0040 in Orifice. Ensure precise metered flow direction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Ball Type Fixed Flow Controls UNF/UNC Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Brass Ball Type Fixed Flow Controls UNF/UNC Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Ball Type Fixed Flow Controls UNF/UNC Adapter is a reliable solution for controlling flow direction and rate. Crafted with precision, it features a stainless steel or buna-N ball with a 0.0040 in orifice diameter. This adapter ensures free flow in one direction and metered flow through the precision orifice in the opposite direction. With a maximum operating pressure of 125 psig and a low flow coefficient of 0.00035, this product offers durability and efficient performance. Designed with 10-32 UNF Male and Female connections, this brass adapter is suitable for a range of applications.
Product Specifications
Dimensions Orifice Diameter
0.0040 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Low Flow Coefficient
0.00035
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
4
Specifications Screened
None
Specifications Seal Material
Viton
