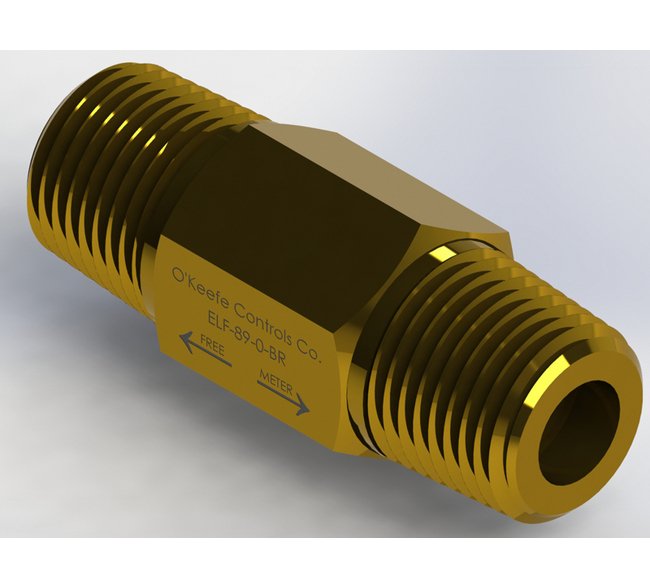

Brass Ball Type NPT Nipple Flow Control Valve
Brass Ball Type NPT Nipple Flow Control Valve
SKU:FLO-a46477
Premium brass flow control valve for precise liquid and gas flow in institutional settings.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Brass Ball Type NPT Nipple Flow Control Valve
$59.99
Quantity: 1
Claim Your Seller Account
Brass Ball Type NPT Nipple Flow Control Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

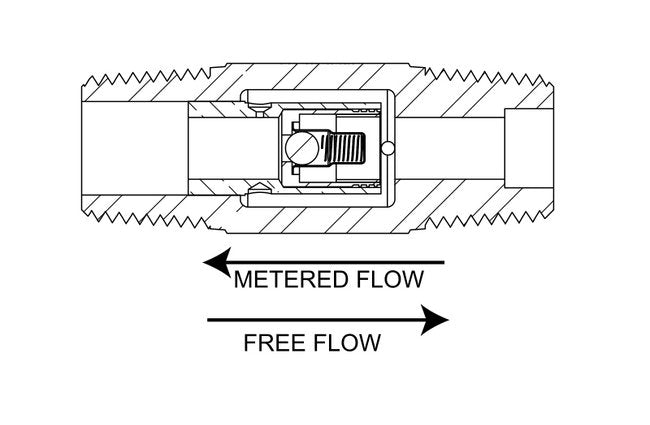

The Brass Ball Type NPT Nipple Flow Control Valve features a precision orifice and ball check valve for controlled flow in both directions, ideal for liquids and gases. With robust brass construction and 304 SS ball material, it offers excellent durability and high-pressure capacity. This tamperproof valve provides consistent flow rates and a choice of cracking pressure, ensuring long-term reliable performance. Suitable for institutional applications requiring precise flow control and reliability.
Product Specifications
Dimensions Orifice Diameter
0.0142 in
Dimensions Total Length
1.91 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
809 to 1650 ft³/h
Flow Data Water Flow At 100 Psig
1.9 to 3.9 gpm
Specifications Assembly Forward Cv
0.195
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.191
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
45.42
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
14
Specifications Orifice Cv Return
0.0043
Specifications Screened
None
