Brass Ball Valve with Double O-ring Stem Seals

Name: Brass Ball Valve with Double O-ring Stem Seals
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-c137f5
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-c137f5

High-performance Brass Ball Valve with Double O-ring Stem Seals, CSA, UL, & FM certified.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Brass Ball Valve with Double O-ring Stem Seals is a top-of-the-line valve designed for reliable performance in high-pressure environments. Its forged brass construction with a chrome-plated, vented ball ensures durability and smooth operation. With maintenance-free features, including PTFE seats and double O-ring stem seals, this valve offers exceptional longevity. Meeting industry standards like CSA, UL, and FM certifications, this valve is suitable for a wide range of applications requiring precision and quality.

Product Specifications

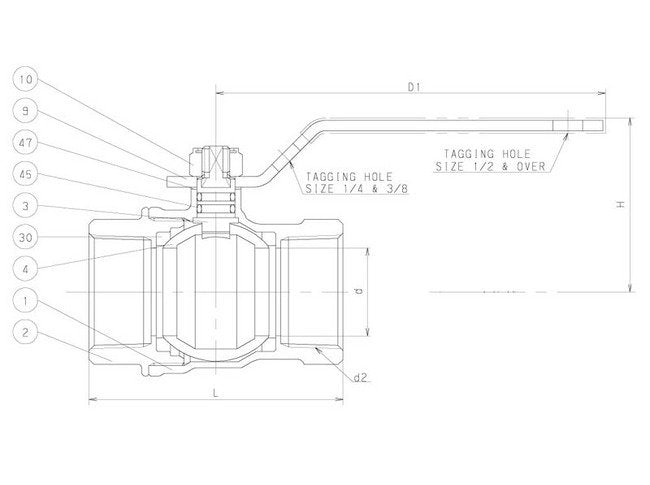

Material List 0

No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT

Specifications Approx Net Wt

60.00

Specifications Carton Qty

Specifications Class

AKSZA

Specifications Dimension D

0.98

Specifications Dimension D1

4.33

Specifications Dimension D1 Max

1.132

Specifications Dimension D1 Min

1.128

Specifications Dimension D2

1 inches

Specifications Dimension H

1.97

Specifications Dimension L

2.83

Specifications Dimension L1

1.64

Specifications End Size

Threaded

Specifications Material

Brass

Specifications Pressuretemperature

150 PSI - Saturated Steam to 366Â°F | 600 PSI - Non-Shock Cold Water, Oil or Gas

Specification 0

Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends

Standard 0

End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
