The Forged Brass Ball Valve is engineered with maintenance-free double O-ring stem seals for enhanced durability. This valve features a two-piece body construction, full port design, and a vented chrome-plated ball with blowout-proof stem (Ni plated). With PTFE seats ensuring reliable performance, this valve is pressure-rated for versatility - 150 PSI for saturated steam up to 366°F and 600 PSI for various fluids. Compliant with CSA, UL, and FM standards, this valve is a reliable choice for industrial applications.
Product Specifications

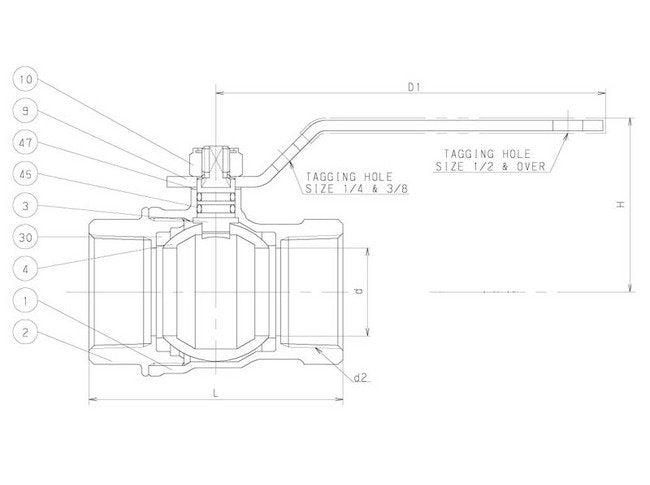

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
29.00
Specifications Carton Qty
120
Specifications Class
AKSZA
Specifications Dimension D
0.39
Specifications Dimension D1
2.76
Specifications Dimension D1 Max
0.506
Specifications Dimension D1 Min
0.502
Specifications Dimension D2
3/8 inches
Specifications Dimension H
1.46
Specifications Dimension L
1.65
Specifications Dimension L1
1.11
Specifications End Size
Threaded
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
