Brass Bulkhead Female Connector - Griplok 1/4in TF x 1/8in FNPT
Brass Bulkhead Female Connector - Griplok 1/4in TF x 1/8in FNPT
SKU:FIT-91c294
Durable Brass Bulkhead Female Connector with 1/4in TF & 1/8in FNPT for precise and reliable connections in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Brass Bulkhead Female Connector - Griplok 1/4in TF x 1/8in FNPT
$24.99
Quantity: 1
Claim Your Seller Account
Brass Bulkhead Female Connector - Griplok 1/4in TF x 1/8in FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

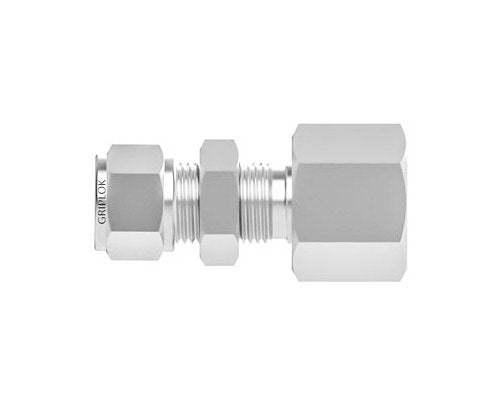

The Brass Bulkhead Female Connector - Griplok is a high-quality instrument tube fitting designed for durability and precision. Constructed with Brass, it ensures long-lasting performance in various applications. With a 1/4-inch Tube Fitting and 1/8-27 FNPT Connection, this connector offers a secure and leak-free connection. The Griplok design adds stability, making it ideal for industrial and institutional settings where reliability is paramount. Its compact dimensions and easy installation further enhance its appeal, meeting the stringent standards of government and institutional procurement requirements.

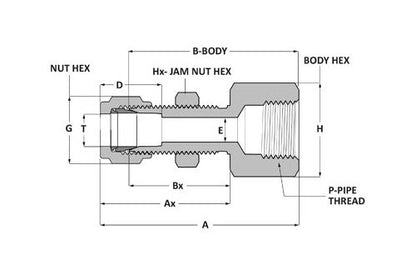

Product Specifications
Dimensions A
1.89 in
Dimensions Ax
1.32 in
Dimensions B
1.56 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Tube Fitting to NPT Thread Fitting - Griplok
