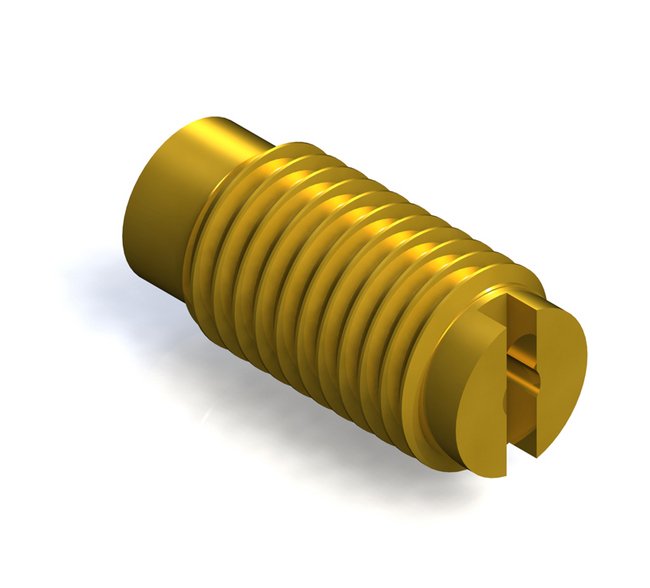

Brass Check Valve with 304 SS Ball, Male Thread, Metal Seat
Brass Check Valve with 304 SS Ball, Male Thread, Metal Seat
SKU:CHE-7084f9
Reliable Brass Check Valve with 304 SS Ball, Metal Seat - Ideal for precise flow control in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Brass Check Valve with 304 SS Ball, Male Thread, Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Brass Check Valve with 304 SS Ball, Male Thread, Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Check Valve featuring a 304 SS Ball and Metal seat is a reliable solution for controlling flow direction. With a CV of 0.02 and a maximum operating pressure of 125 psig, this valve ensures efficient performance up to 150 °F. The 10-32 UNF Male Thread connection with O-ring seal offers secure installation, while the compact design with a total length of 0.425 in makes it suitable for various applications. This valve minimizes seat leakage to 20 SSCM, meeting stringent quality standards for industrial applications.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
