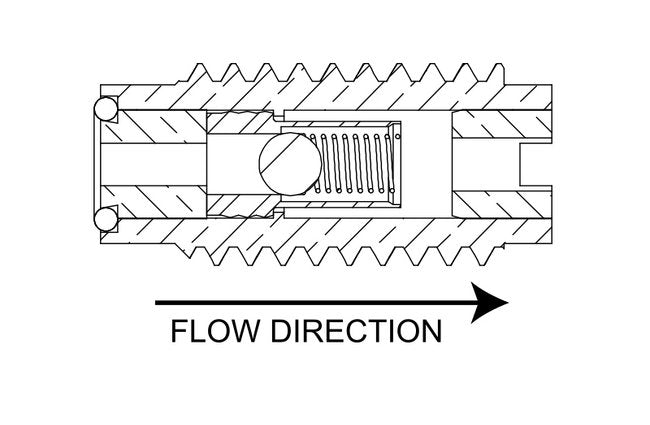

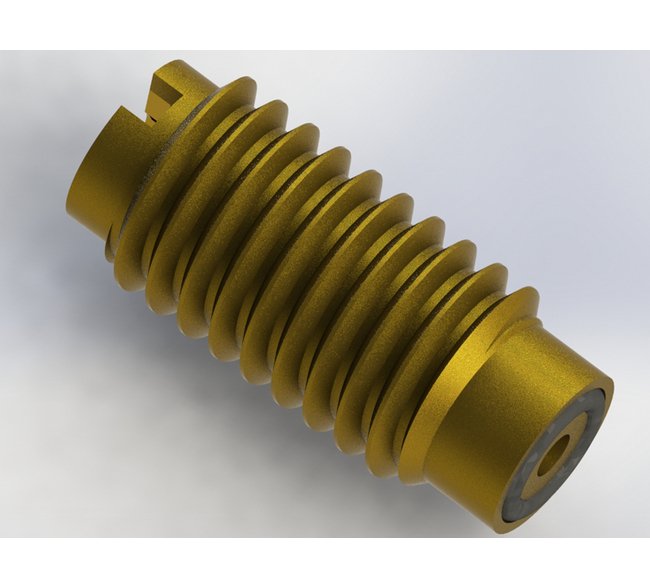

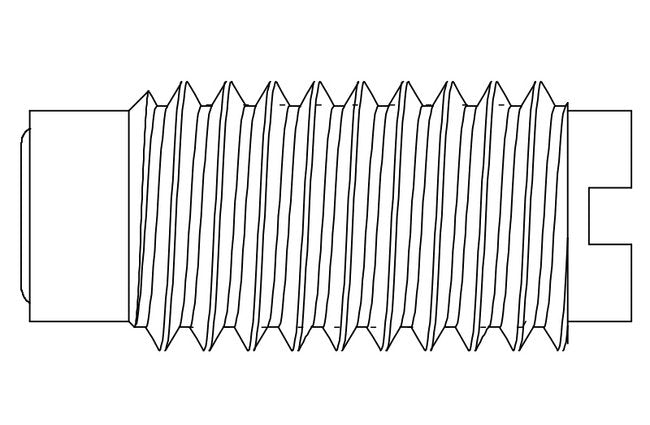

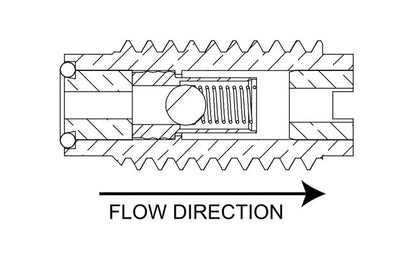

Brass Check Valve with 304 SS Ball, Threaded Insert, Metal Seat

Name: Brass Check Valve with 304 SS Ball, Threaded Insert, Metal Seat
Brand: O'Keefe Controls Co.
SKU: CHE-3284d5
Price: 29.99 USD
Availability: OutOfStock

SKU:CHE-3284d5

Reliable Brass Check Valve with 304 SS Ball for precise flow control in high-pressure systems.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience exceptional durability and precision with our Brass Check Valve featuring a 304 SS Ball for reliable performance in high-pressure environments. With a cracking pressure of 10 psid and a maximum operating pressure of 200 psig, this valve ensures optimal flow control and safety. The threaded insert with O-ring seal provides a secure connection, while its compact dimensions make it ideal for various industrial applications. Compliant with federal procurement standards and industry certifications, this valve is a top choice for institutional buyers seeking quality and performance.

Product Specifications

Dimensions Thread Size

5/16-24

Dimensions Total Length

0.669 in

Specifications Ball Material

304 SS

Specifications Connection A

5/16-24 UNF Threaded Insert O-ring seal

Specifications Cracking Pressure

10 psid

Specifications Cv

0.081

Specifications Material

Brass

Specifications Maximum Operating Pressure

200 psig

Specifications Maximum Temperature

300 ÂºF

Specifications Screened

None

Specifications Thread

Male
