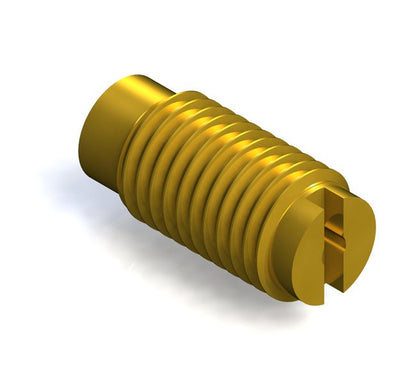

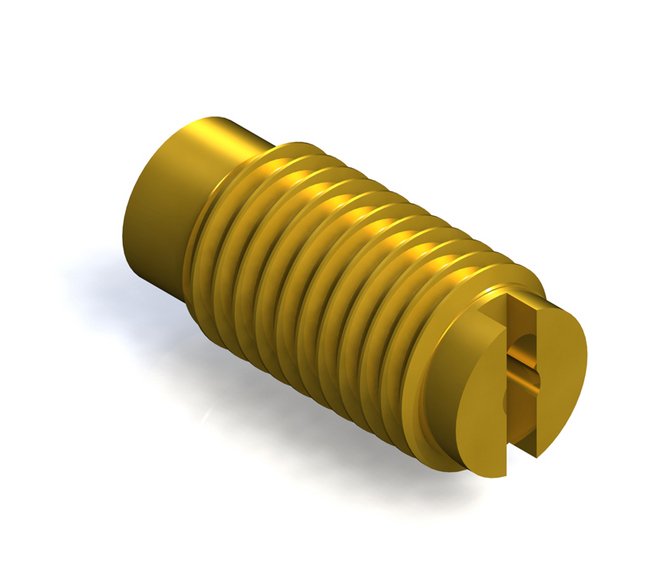

Brass Check Valves, Threaded Insert, Metal Seat
Brass Check Valves, Threaded Insert, Metal Seat
SKU:CHE-2b756c
Reliable Brass Check Valves with Ball Type design, Threaded Insert, and Metal Seat. Ideal for preventing backflow in industrial settings.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Brass Check Valves, Threaded Insert, Metal Seat
$44.99
Quantity: 1
Claim Your Seller Account
Brass Check Valves, Threaded Insert, Metal Seat
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brass Check Valves with Ball Type design and Threaded Insert feature a durable 304 SS Ball and Viton Seal, ensuring reliable performance in industrial settings. With a maximum temperature of 300°F and a pressure rating of 200 psig, these valves are designed to prevent backflow effectively. The metal-to-metal seat construction minimizes leakage, meeting stringent industry standards for performance and durability.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
